Product ID: 49Y4230 - FRU: 49Y4232

Contents:

Based on the new Intel® 82580 Gigabit Ethernet Controller, the Intel Ethernet Dual Port and Quad Port Server Adapters for IBM® System x® are Intel's fourth generation of PCI Express Gigabit Ethernet (PCIe GbE) adapters. These adapters showcase the industry's first fully integrated, multi-port PCIe 2.0 GbE controllers, providing a smaller footprint and lower power dissipation.

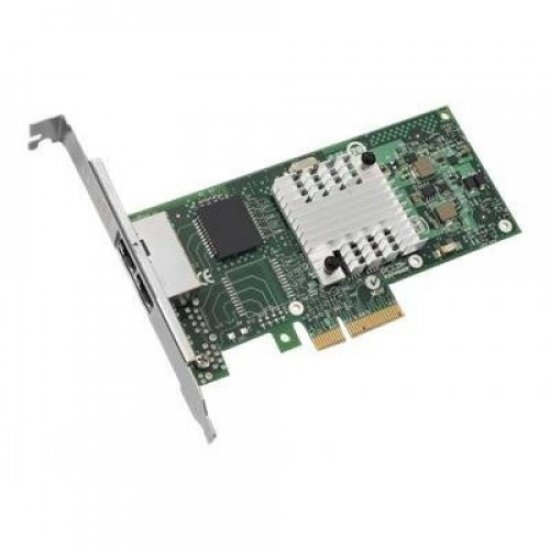

In addition, these adapters offer advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express 2.0 interface. Intel's first eco-friendly, halogen-free design combines low power use and low cost for one of the best price to performance ratios in a multi-port solution that is available today. Figure 1 shows the Intel Ethernet Quad Port Server Adapter.

Did you know

These dual port and quad port adapters provide high-performing, multi-port gigabit connectivity in a multi-core platform as well as in a virtualized environment. In a multi-core platform, the adapter supports technologies such as Intel QuickData Technology, MSI-X, and Low Latency Interrupts that help accelerate data across the platform, therefore improving application response times. For virtualized environments, Intel Ethernet adapters have advanced features with VMDq that lower CPU utilization and increase I/O performance.

Part number information

Table 1 shows the relevant part numbers and feature codes for the adapters.
Table 1. Ordering part numbers and feature codes

The part numbers for the Intel Ethernet Dual Port and Quad Port Server Adapters include the following items:
One Ethernet adapter with a standard 3U (4.75-in.) bracket
One Driver CD
One 2U bracket
One Publications CD
One Safety flyer

Note: The Intel Ethernet Dual Port Server Adapter does not have a heatsink.

Features and specifications

The adapters have the following features:
Two or four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
Based on Intel 82580 ASIC (quad-port MAC/PHY controller)
PCIe 2.0 x4 host interface
Low-profile card form factor
Wake on LAN support
Preboot eXecution Environment (PXE) boot support
VLAN support with VLAN tag insertion, stripping, and packet filtering for up to 4096 VLAN tags
iSCSI boot support (built-in software iSCSI initiator)
iSCSI support with native operating system initiators
Jumbo frame support
Intel I/O Acceleration Technology (I/OAT) acceleration
Intel Virtual Machine Device Queues (VMDq) support for VMware with eight queues per port
TCP/IP checksum offload
TCP/IP segmentation offload / large-send offload support

Intel I/O Acceleration Technology (Intel I/OAT) is a suite of features that improves data acceleration across the platform, from networking devices to the chipset and processors, which helps to improve system performance and application response times. The suite of features includes:
Intel QuickData Technology: Provides the Direct Memory Access (DMA) engine, which moves data using the chipset instead of the CPU.
MSI-X: Minimizes the impact of I/O interrupts by load-balancing interrupts across multiple processor cores.
Low-Latency Interrupts: Allows the adapter to bypass the automatic moderation of time intervals between the interrupts (based on the sensitivity of the incoming data).
Receive Side Scaling (RSS): Directs the interrupts to a specific processor core based on the application’s address.

Virtual Machine Device Queues (VMDq) reduces I/O impact on the Hypervisor in a virtualized server by performing data sorting and coalescing in the network silicon. VMDq technology makes use of multiple queues in the network controller. As data packets enter the network adapter, they are sorted, and packets traveling to the same destination (or virtual machine) are grouped together in a single queue. The packets are then sent to the Hypervisor, which directs them to their respective virtual machines. Relieving the Hypervisor of packet filtering and sorting improves overall CPU usage and throughput levels.

The adapters have complete iSCSI support for proven native OS and VMM iSCSI initiators as well as iSCSI boot. Historically, CRC32C computation has degraded system performance, but now with the CRC instruction set included in the latest Intel Xeon processors, CRC validation is possible with minimal impact to network throughput while delivering data integrity.

The adapters support the following IEEE standards:
IEEE 802.3ad (link aggregation control protocol)
IEEE 802.1Q VLANs
IEEE 1588 Precision Time Control Protocol
IEEE 802.3 2005 flow control support
IEEE 802.1p

Physical specifications

The Intel Ethernet Server Adapter cards have the following physical specifications:
Length: 140 mm (5.5 in)
Height: 70 mm (2.75 in)
Depth: 16 mm (0.62 in)
Maximum weight: 0.25 kg (0.5 lb)

Operating environment

The Intel Ethernet Server Adapter cards are supported in the following environment:

Operating temperature:
10 to 35 °C (50 to 95 °F) at an altitude of 0 to 914 m (0 to 3,000 ft)
10 to 32 °C (50 to 90 °F) at an altitude of 914 m to 2,133 m (3,000 ft to 7,000 ft)

Relative humidity:
Operating: 20% to 80%, noncondensing

Warranty

One year limited warranty. When installed in a System x server, these cards assume your system’s base warranty and any IBM ServicePac® upgrade.

Supported servers

The Intel Ethernet Server Adapter cards are supported in the System x servers identified in Table 3.

Table 3. Supported System x servers

Product description

Part number

Intel Ethernet Quad Port Server Adapter I340-T4 for IBM System x

49Y4240

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Intel Ethernet Dual Port Server Adapter I340-T2 for IBM System x

49Y4230

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

Y

See IBM ServerProven® for the latest information on the adapters supported by each System x server type at the following address:
http://ibm.com/servers/eserver/serverproven/compat/us/.

Supported operating systems

The Intel Ethernet Server Adapter cards support the following operating systems:
Microsoft Windows Server 2003, Web Edition
Microsoft Windows Server 2003/2003 R2, Datacenter Edition
Microsoft Windows Server 2003/2003 R2, Datacenter x64 Edition
Microsoft Windows Server 2003/2003 R2, Enterprise Edition
Microsoft Windows Server 2003/2003 R2, Enterprise x64 Edition
Microsoft Windows Server 2003/2003 R2, Standard Edition
Microsoft Windows Server 2003/2003 R2, Standard x64 Edition
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2008, Datacenter x64 Edition
Microsoft Windows Server 2008, Datacenter x86 Edition
Microsoft Windows Server 2008, Enterprise x64 Edition
Microsoft Windows Server 2008, Enterprise x86 Edition
Microsoft Windows Server 2008, Standard x64 Edition
Microsoft Windows Server 2008, Standard x86 Edition
Microsoft Windows Server 2008, Web x64 Edition
Microsoft Windows Server 2008, Web x86 Edition
Microsoft Windows Server 2012
Microsoft Windows Small Business Server 2003/2003 R2 Premium Edition
Microsoft Windows Small Business Server 2003/2003 R2 Standard Edition
Red Hat Enterprise Linux 5 Server Edition
Red Hat Enterprise Linux 5 Server Edition with Xen
Red Hat Enterprise Linux 5 Server with Xen x64 Edition
Red Hat Enterprise Linux 5 Server x64 Edition
Red Hat Enterprise Linux 6 Server Edition
Red Hat Enterprise Linux 6 Server x64 Edition
SUSE LINUX Enterprise Server 10 for AMD64/EM64T
SUSE LINUX Enterprise Server 10 for x86
SUSE LINUX Enterprise Server 10 with Xen for AMD64/EM64T
SUSE LINUX Enterprise Server 11 for AMD64/EM64T
SUSE LINUX Enterprise Server 11 for x86
SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T
VMware ESX 4.0
VMware ESX 4.1
VMware ESXi 4.1
VMware vSphere 5
VMware vSphere 5.1

See the IBM ServerProven Web site for the latest information about the specific versions and service packs supported at the following address:
http://ibm.com/servers/eserver/serverproven/compat/us/.

Click System x servers, and then click LAN to see the support matrix. Check the check mark that is associated with the System x server in question to see the details of operating system support.
