Lenovo System x3250M6 - 3633D2A



File chi tiết
Product ID: 3633D2A

Intel Xeon 4C E3-1220v5 80W 3.0GHz 2133MHz, 4GB, O/Bay 3.5in SS SAS/SATA, 460W p/s, Rack, Warranty 36 months.



Kho: Đặt hàng

Giá sản phẩm: VNĐ

* Giá trên chưa bao gồm VAT *

Số lượng



Form factor/height 1U Rack
Processor (std/max) Xeon 4C E3-1220v5 80W 3.0GHz 2133MHz/up to 8MB
Memory (std/max) Up to 64GB of 2133MHz TruDDR4 ECC UDIMMs (4 slots)
Disk bays 4 x 3.5-inch hot-swap/simple-swap or 8 x 2.5-inch hot-swap/simple-swap
RAID support Software RAID 0/1/10/5; opt. hardware RAID 0/1/10/5/6 via M1210 (6Gbps or 12Gbps) or M5200 series (6Gbps or 12Gbps)
Power supply (std/max) One fixed 300W 80 PLUS Gold; or two hot-swap redundant 460W 80 PLUS Gold / Energy Star 2.0
USB Ports/VGA Ports Up to 2 x USB 3.0 front, 2 x USB 3.0 rear, 1 x USB 3.0 interior
Hot-swap components HDDs, SSDs, 460W PSUs
Network interface controller (NIC)
Trusted platform module (TPM)
2 x GbE ports (1 shared with systems management); opt. single- or dual-port 10GbE adapter
Expansion Slots 2 PCIe 3.0 (one reserved for optional M1210 RAID controller)
Maximum internal storage 24TB 3.5-inch hot-swap SAS/SATA HDDs; 16TB 3.5-inch simple-swap SATA HDDs; 16TB 2.5-inch hot-swap/simple-swap SATA HDDs; 16TB 2.5-inch hot-swap SAS/SATA HDDs; or 6.4TB hot-swap SATA SSDs
Systems management Lenovo XClarity Administrator with mobile option, Lenovo XClarity Pro software bundle, IMM 2.1, shared GbE port
Operating systems supported Microsoft Windows Server, SUSE Linux; Red Hat Enterprise Linux; Ubuntu (tested and certified); VMware ESXi
Limited warranty 3-year parts and labor or 1-year parts and labor

Abstract

The Lenovo System x3250 M6 is an affordable, single-socket 1U rack solution for small and medium businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security.

The System x3250 M6 offers a wide range of processors - from Intel Celeron to Intel Xeon E3-1200 v5. With support for a memory capacity of up to 64 GB and internal storage of up to 32 TB, the x3250 M6 is ideal for small- to medium-sized business, workgroups, distributed locations, and webscale workloads.

This product guide provides essential pre-sales information to understand the structure of the System x3250 M6 offering, its key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the System x3250 M6 and consider its use in IT solutions.

Change History

Changes in the January 17 update:

  • Added 2 TB and 4 TB NL SATA HDDs
  • Added Intel S3520 and PM863a Enterprise Entry SSDs
  • Added VMware vSphere 6.5 (ESXi), SUSE Linux Enterprise Server 12 SP2, and Red Hat Enterprise Linux Server 7.3
  • Added Lenovo Storage V5030F
  • Added Storwize V7000 for Lenovo (Model HC1 [Gen2+])
  • Added Lenovo Storage D1212 and D1224 expansion enclosures
  • Added Lenovo Storage D3284 HD expansion enclosure
  • Updated Power distribution units

Introduction

The Lenovo System x3250 M6 is an affordable, single-socket 1U rack solution for small and medium businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security.

The System x3250 M6 offers a wide range of processors — from Intel Celeron to Intel Xeon E3-1200 v5. With support for a memory capacity of up to 64 GB and internal storage of up to 32 TB, the x3250 M6 is ideal for small- to medium-sized business, workgroups, distributed locations, and webscale workloads.

Flexible and scalable internal storage configurations include up to eight 2.5-inch or four 3.5-inch drives with a wide selection of drive sizes and types. Also, it features integrated 1 Gb Ethernet NICs and additional PCIe expansion slots for advanced RAID protection and network scalability.

The following figure shows the System x3250 M6.

Lenovo System x3250 M6

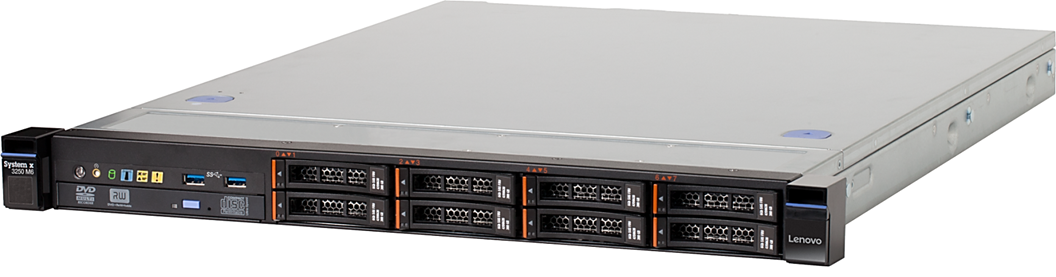

Figure 1. Lenovo System x3250 M6

Did you know?

The System x3250 M6 offers enterprise-class reliability features such as error correcting code (ECC), hot-swap components, and advanced RAID protection with flexible storage options at an affordable price.

The Integrated Management Module 2.1 built into the System x3250 M6 offers easy-to-use, enterprise-class manageability to monitor server availability and perform remote management.

The System x3250 M6 has a mere 22.7-inch (576 mm) deep chassis, helping customers reduce their business footprint.

The System x3250 M6 leverages System x Trusted Platform Assurance, an exclusive set of System x features and practices (including a Trusted Platform Module) that establishes a solid security foundation for customer workloads.

Key features

The System x3250 M6 server is a compact, cost-effective, single-processor 1U rack server that has been optimized to provide enterprise-class features to small-to-medium-sized businesses, retail stores, or distributed enterprises.

Scalability and performance

The System x3250 M6 offers numerous features to boost performance and improve scalability:

  • The Intel Xeon processor E3-1200 v5 product family improves productivity by offering 4-core processors with up to 3.7 GHz core speeds and up to 8 MB of cache to provide affordable single-socket system performance.
    • Choice of processors with up to four cores and up to eight threads to enable the effective use of multithreaded applications.
    • Intelligent and adaptive system performance with Intel Turbo Boost Technology 2.0 allows processor cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
    • Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor with up to two threads per core.
    • Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better use the hardware for virtualization workloads.
  • Up to four 2133 MHz DDR4 ECC UDIMMs provide speed, availability, and capacity of up to 64 GB.
  • Flexible and scalable internal storage configurations provide up to 32 TB of storage capacity in a compact 1U form factor.
  • The 12 Gbps SAS internal storage connectivity doubles the data transfer rate compared to 6 Gb SAS solutions to maximize the performance of storage I/O-intensive applications.
  • The use of solid-state drives (SSDs) instead of, or along with, traditional spinning hard disk drives (HDDs) can significantly improve I/O performance.
  • The server has two integrated Gigabit Ethernet ports and supports optional 10 Gb Ethernet PCIe adapters for high-speed network communications.
  • The server offers two PCI Express (PCIe) 3.0 I/O expansion slots that offer increased I/O bandwidth in a dense 1U rack form factor.
  • With Intel Integrated I/O Technology, the PCI Express 3.0 controller is integrated into the Intel Xeon processor E3-1200 v5 product family. Such integration reduces I/O latency and increases overall system performance.

Availability and serviceability

The System x3250 M6 provides many features to simplify serviceability and increase system uptime:

  • The server supports UDIMM memory with ECC protection which provides error correction not available in PC-class "servers" that use parity memory. Avoiding system crashes (and data loss) due to soft memory errors means greater system uptime.
  • Tool-less cover removal provides easy access to upgrades and serviceable parts, such as memory and adapters.
  • A choice of affordable onboard SATA RAID or advanced hardware RAID redundancy, along with hot-swap drives (select models), offers data protection and greater system uptime.
  • The server offers redundant hot-swap power supplies (select models) to provide availability for business-critical applications.
  • Predictive Failure Analysis (PFA) in the System x3250 M6 detects when system components (processors, memory, and battery) operate outside standard thresholds and generates proactive alerts in advance of possible failure, thereby increasing uptime.
  • The use of SSDs can provide better reliability than the use of traditional HDDs, for greater uptime.
  • Built-in Integrated Management Module II (IMM2.1) continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failure, to minimize downtime.
  • Built-in diagnostics using Dynamic Systems Analysis (DSA) Preboot speed up troubleshooting to reduce service time.

Manageability and security

Powerful systems management features simplify local and remote management of the System x3250 M6:

  • The server includes an Integrated Management Module II (IMM2.1) to monitor server availability and perform remote management.
  • An integrated industry-standard Unified Extensible Firmware Interface (UEFI) enables improved setup, configuration, and updates, and simplifies error handling.
  • Lenovo offers ToolsCenter software tools at no additional cost that can help customers set up, use, and maintain the server.
  • Lenovo XClarity Administrator offers comprehensive hardware management tools that can help increase uptime, reduce costs and improve productivity through advanced server management capabilities.
  • An integrated Trusted Platform Module (TPM) supports the enablement of advanced cryptographic functionality, such as digital signatures and remote attestation.
  • System x Trusted Platform Assurance, an exclusive set of System x security features and practices, establishes a solid security foundation for workloads by delivering firmware that is securely built, tested, digitally signed, and verified prior to execution.

Energy efficiency

The System x3250 M6 offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to a green environment:

  • Energy-efficient planar components help lower operational costs.
  • 80 PLUS Gold-certified power supplies enable greater energy savings while providing flexibility to meet your business needs.
  • The Lenovo Power Planner tool provides information about the power consumption and electric current calculation for the different configurations of servers and other devices, which helps plan deployment of servers and devices in an efficient way.
  • Intel Intelligent Power Capability powers individual processor elements on and off as needed, to reduce power draw.
  • Low-voltage Intel Xeon processors draw less energy to satisfy the demands of power and thermally constrained data centers and telecommunication environments.
  • 1.2 V DDR4 memory DIMMs offer higher energy savings compared to 1.35 V and 1.5 V DDR3 DIMMs.

Components and connectors

The following figure shows the front of the System x3250 M6 server with up to eight 2.5-inch drive bays.

Front view of the System x3250 M6: 8x 2.5-inch drive bays

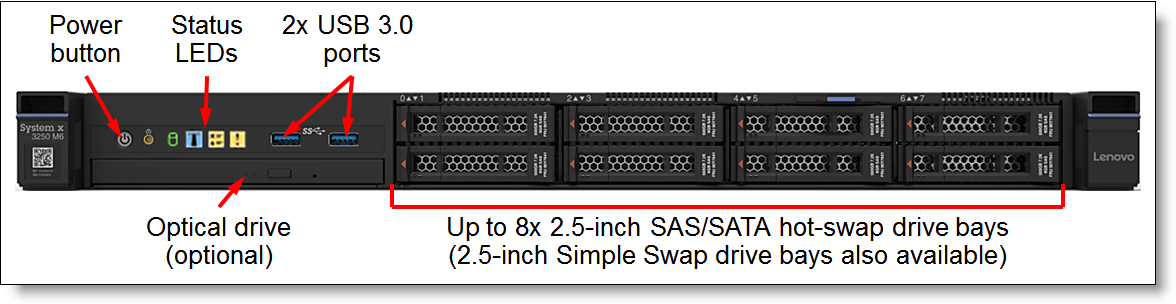

Figure 2. Front view of the System x3250 M6: 8x 2.5-inch drive bays

The following figure shows the front of the System x3250 M6 server with four 3.5-inch drive bays.

Front view of the System x3250 M6: 4x 3.5-inch drive bays

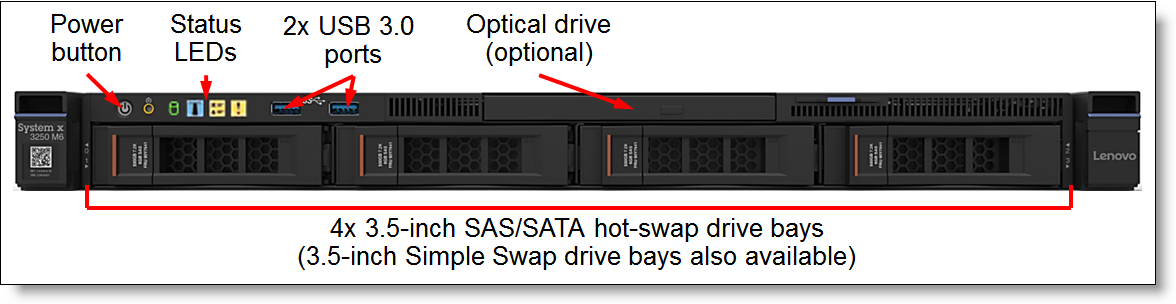

Figure 3. Front view of the System x3250 M6: 4x 3.5-inch drive bays

The following figure shows the rear of the System x3250 M6 server.

Rear view of the System x3250 M6

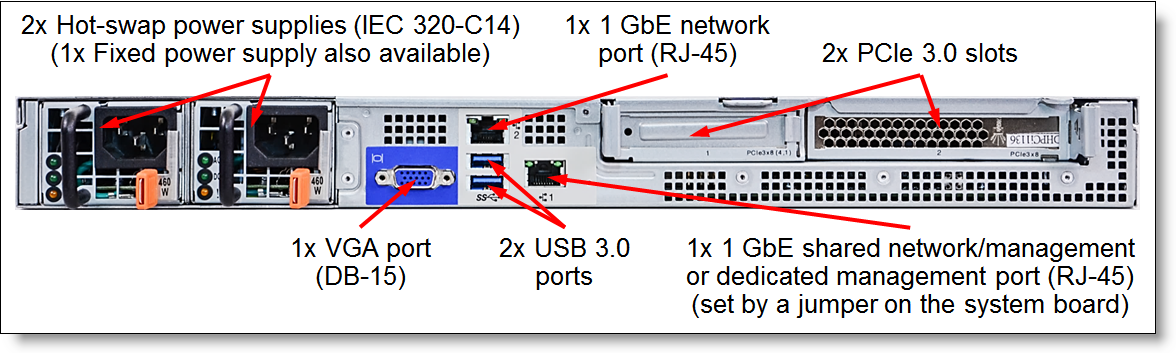

Figure 4. Rear view of the System x3250 M6

The following figure shows the locations of key components inside the System x3250 M6.

Internal view of the System x3250 M6

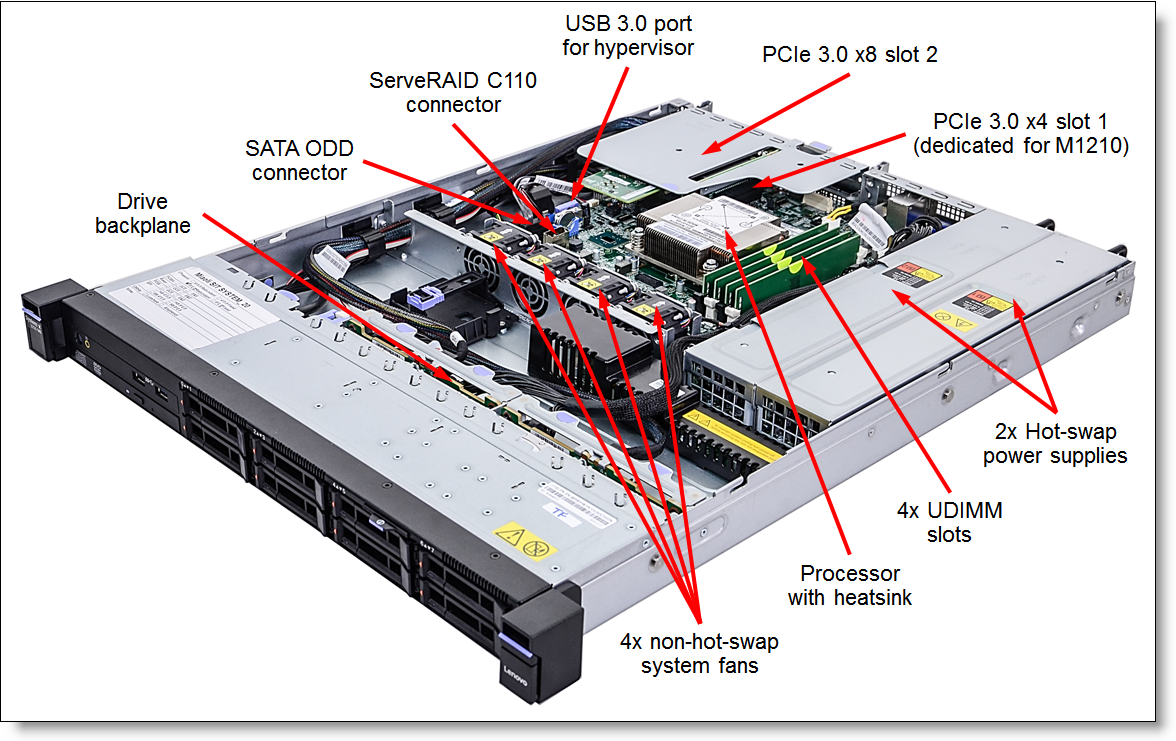

Figure 5. Internal view of the System x3250 M6

System specifications

The following table lists the system specifications.

Table 1. System specifications
Components Specification
Form factor 1U rack-mount
Processor One processor:
  • Intel Xeon processor E3-1200 v5 product family with four cores up to 3.7 GHz, 8 MB cache, and 2133 MHz memory speed; or
  • Intel Core i3 processor 6100/6300 product families with two cores up to 3.9 GHz, up to 4 MB cache, and 2133 MHz memory speed; or
  • Intel Pentium processor G4400/G4500 product families with two cores up to 3.6 GHz, 3 MB cache, and 2133 MHz memory speed; or
  • Intel Celeron Processor G3900 product family with two cores up to 2.9 GHz, 2 MB cache, and 1866 MHz memory speed.
Chipset Intel C232.
Memory Four DIMM sockets. Support for ECC UDIMMs. Memory speeds up to 2133 MHz.
Memory capacity

Up to 64 GB with 4x 16 GB UDIMMs

Memory protection Error correction code (ECC).
Drive bays
  • Up to 8x 2.5" SAS/SATA hot-swap drive bays
  • 4x 3.5" SAS/SATA hot-swap drive bays
  • Up to 8x 2.5" SATA Simple Swap drive bays
  • 4x 3.5" SATA Simple Swap drive bays
Drive types 2.5-inch drives:
  • 12 Gb SAS HDDs up to 1.8 TB
  • 12 Gb Nearline (NL) SAS HDDs up to 2 TB
  • 6 Gb NL SATA HDDs up to 2 TB
  • 6 Gb SATA SSDs up to 1.6 TB
3.5-inch drives:
  • 12 Gb NL SAS HDDs up to 8 TB
  • 6 Gb NL SATA HDDs up to 8 TB
  • 6 Gb SATA SSDs up to 1.6 TB
Intermix of SAS and SATA HDDs and SSDs is supported within a system, but not within a RAID array.
Internal storage capacity
  • Up to 32 TB with 8 TB 3.5" NL SAS or NL SATA HDDs
  • Up to 16 TB with 2 TB 2.5" NL SAS or NL SATA HDDs
  • Up to 14.4 TB with 1.8 TB 2.5" SAS HDDs
  • Up to 12.8 TB with 1.6 TB 2.5" SATA SSDs
Storage controller
  • 6 Gb SATA RAID: RAID 0, 1, 10, 5 with C110.
  • 12 Gb SAS/6 Gb SATA RAID: RAID 0, 1, 10 with M1210, M1215, or M5210.
    Optional upgrade to RAID 5, 50 is available for M1210, M1215.
    Optional upgrade to RAID 5, 50 is available for M5210 (zero-cache; 1 GB non-backed cache; 1 GB, 2 GB, or 4 GB flash-backed cache).
    Optional upgrade to RAID 6, 60 is available for M5210 (requires a cache upgrade).
    Optional SSD Caching and Performance Accelerator upgrades are available for M5210.
  • 12 Gb SAS/6 Gb SATA non-RAID: N2215 HBA.
Optical drive bays One. Support for DVD-ROM or Multiburner.
Backup drive bays None. Support for an external backup unit.
Network interfaces 2x Integrated Gigabit Ethernet 1000BASE-T ports (RJ-45 with the onboard Intel I350-AM2 controller; one port is configured as a dedicated or shared network/systems management port.
I/O expansion slots Two PCIe slots:
  • Slot 1: PCIe 3.0 x8 (x4-wired); custom low profile, dedicated for the M1210 controller.
  • Slot 2: PCIe 3.0 x8 (x8-wired); full-height, half-length.
Ports
  • Front: 2x USB 3.0 ports.
  • Rear: 2x USB 3.0 and 1x DB-15 VGA ports. Optional 1x DB-9 serial port.
  • Internal: 1x USB 3.0 port (for embedded hypervisor).
Cooling Calibrated Vectored Cooling with four non-hot-swap system fans.
Power supply One 300 W AC (100 - 240 V) fixed power supply (80 PLUS Gold); or up to two redundant hot-swap 460 W AC (100 - 240 V) power supplies (80 PLUS Gold, Energy Star 2.0).
Hot-swap parts Hard drives (select models) and power supplies (select models).
Systems management Unified Extensible Firmware Interface (UEFI), Integrated Management Module II (IMM2.1) based on Renesas SH7758, Predictive Failure Analysis, system LEDs, Automatic Server Restart, ToolsCenter, and Lenovo XClarity Administrator. Optional IMM Advanced Upgrade for remote presence (graphics, keyboard and mouse, virtual media).
Security features Power-on password, administrator's password, Trusted Platform Module (TPM) 2.0 (hardware) / 1.2 (firmware). Optional lockable front bezel.
Video Matrox G200eR2 with 16 MB memory integrated into the IMM2.1. Maximum resolution is 1600x1200 at 75 Hz with 16 M colors.
Operating systems Microsoft Windows Server 2012, 2012 R2, and 2016; Red Hat Enterprise Linux 6 (x64) and 7, SUSE Linux Enterprise Server 11 (x64) and 12, VMware vSphere (ESXi) 5.5, 6.0, and 6.5.
Warranty Three-year (Machine Type 3633) or one-year (Machine Type 3943) customer-replaceable unit and onsite limited warranty with 9x5/Next Business Day.
Service and support Optional service upgrades are available through the Lenovo Services: 4-hour or 2-hour response time, 8 hours fix time, one-year or two-year warranty extension, remote technical support for System x hardware and selected System x and third-party (Microsoft, Linux, VMware) software.
Dimensions Height: 43 mm (1.7 in), width: 435 mm (17.1 in), depth: 576 mm (22.7 in)
Weight Minimum: 8.6 kg (19.0 lb), maximum: 13.7 kg (30.1 lb)

Standard models

The following tables list the standard models of the System x3250 M6.

Product availability: Standard models of the System x3250 M6 are not available in North America.

Table 2. Standard models with 3-year warranty (Machine Type 3633)
Model number§ Intel processor# Memory
(UDIMM)
RAID Drive bays
(std / max)
Drives NIC I/O slots† Optical drive Power supply
(std / max)
Models announced April 2016
3633B2x 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 4GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633D2x 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 4GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633B4x 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 4GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633C4x 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633M2x 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" SS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633H2x 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633F2x 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633L2x 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633G2x 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2

§ x in the Model number represents a country-specific letter (for example, the EMEA model number is 3633B2G). Ask a Lenovo representative for specifics.
# Processor details: Quantity, model, core speed, memory speed, cores/threads, and thermal design power (TDP).
* An optional 4-to-8 drive bay upgrade kit requires the installation of the M1215, M5210, or N2215 controller and the removal of the existing M1210 controller.
† For models with the C110 or M1210 controller, only one PCIe slot (slot 2) is available for the installation of additional PCIe adapters. For models with the M1215 controller, no slots are available for the installation of additional PCIe adapters.
‡ An optional optical drive requires the ODD Cable Kit (00YE644).

Table 3. Standard models with 1-year warranty (Machine Type 3943)
Model number§ Intel processor# Memory
(UDIMM)
RAID Drive bays
(std / max)
Drives NIC I/O slots† Optical drive Power supply
(std / max)
Models announced April 2016
3943B2x 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 4GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943D2x 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 4GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943B4x 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 4GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943C4x 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943H2x 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943F2x 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943M2x 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" SS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943L2x 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943G2x 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2

§ x in the Model number represents a country-specific letter (for example, the EMEA model number is 3943B2G). Ask a Lenovo representative for specifics.
# Processor details: Quantity, model, core speed, memory speed, cores/threads, and thermal design power (TDP).
* An optional 4 to 8 drive bay upgrade kit requires the installation of the M1215, M5210, or N2215 controller and the removal of the existing M1210 controller.
† For models with the C110 or M1210 controller, only one PCIe slot (slot 2) is available for the installation of additional PCIe adapters. For models with the M1215 controller, no slots are available for the installation of additional PCIe adapters.
‡ An optional optical drive requires the ODD Cable Kit (00YE644).

The standard models of the System x3250 M6 that are listed in the Standard models section are shipped with the following items:

  • Statement of Limited Warranty
  • Important Notices
  • Rack Installation Instructions
  • Documentation CD containing Installation and User's Guide
  • Rack mount kit

Note: Power cables are not included; see Power supplies and cables for ordering information.

TopSeller models

The following tables list the TopSeller models of the System x3250 M6.

Note: TopSeller models are country-specific; that is, each country may define their own server models, and not all server models are available in every country.

Table 4. TopSeller models with 3-year warranty (Machine Type 3633) (F=Flash backup)
Model number Intel processor# Memory
(UDIMM)
RAID Drive bays
(std / max)
Drives NIC I/O slots† Optical drive Power supply
(std / max)
TopSeller - North America
3633K2U 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 16GB C110 4x 2.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633K1U 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 16GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
394316A 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 16GB M5210
2GB (F)
4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633K3U 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 16GB M1215 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633K4U 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 16GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633K5U 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 16GB M1215 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633K6U 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 16GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633K7U 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 16GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633K8U 1x E3-1280 v5 3.7GHz 2133MHz 4C/8T (80W) 1x 16GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
TopSeller - Europe, Middle East, Africa (EMEA)
3633EFG 1x G4400 3.3GHz 2133MHz 2C/2T (54W) 1x 4GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633E1G 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633E8G 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633EBG 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633E2G 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633E5G 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633EGG 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633E6G 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633EHG 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633E9G 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633E3G 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633EDG 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633EAG 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633ECG 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633E4G 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3633E7G 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633EEG 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
TopSeller - Japan
3633EJJ 1x i3-6100 3.7GHz 2133MHz 2C/4T (51W) 1x 4GB M5210 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633EKJ 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 4GB M5210 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3633EMJ 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 4GB M5210 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2

# Processor details: Quantity, model, core speed, memory speed, cores/threads, and thermal design power (TDP).
* An optional 4 to 8 drive bay upgrade kit requires the installation of the M1215, M5210, or N2215 controller and the removal of the existing M1210 controller.
† For models with the C110 or M1210 controller, only one PCIe slot (slot 2) is available for the installation of additional PCIe adapters. For models with the M1215 or M5210 controller, no slots are available for the installation of additional PCIe adapters.
‡ An optional optical drive requires the ODD Cable Kit (00YE644).

Table 5. TopSeller models with 1-year warranty (Machine Type 3943) (F=Flash backup)
Model number§ Intel processor# Memory
(UDIMM)
RAID Drive bays
(std / max)
Drives NIC I/O slots† Optical drive Power supply
(std / max)
TopSeller - North America
3943K2U 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 16GB C110 4x 2.5" SS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943K1U 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 16GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
394316A 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 16GB M5210
2GB (F)
4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943K3U 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 16GB M1215 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943K4U 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 16GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
TopSeller - Europe, Middle East, Africa (EMEA)
3943EFG 1x G4400 3.3GHz 2133MHz 2C/2T (54W) 1x 4GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943E1G 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB C110 4x 3.5" SS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943E8G 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943EBG 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943E2G 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943E5G 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943EGG 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943E6G 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943EHG 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943E9G 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943E3G 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943EDG 1x E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943EAG 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943ECG 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943E4G 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943E7G 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1210 4x 3.5" HS / 4 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
3943EEG 1x E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) 1x 8GB M1215 8x 2.5" HS / 8 Open bay 2x GbE 2 Optional‡ 1x 460 W HS / 2
TopSeller - Japan
3943EJJ 1x i3-6100 3.7GHz 2133MHz 2C/4T (51W) 1x 4GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943EKJ 1x E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) 1x 4GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1
3943EMJ 1x E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) 1x 4GB M1210 4x 2.5" HS / 8* Open bay 2x GbE 2 Optional‡ 1x 300 W Fixed / 1

# Processor details: Quantity, model, core speed, memory speed, cores/threads, and thermal design power (TDP).
* An optional 4 to 8 drive bay upgrade kit requires the installation of the M1215, M5210, or N2215 controller and the removal of the existing M1210 controller.
† For models with the C110 or M1210 controller, only one PCIe slot (slot 2) is available for the installation of additional PCIe adapters. For models with the M1215 controller, no slots are available for the installation of additional PCIe adapters.
‡ An optional optical drive requires the ODD Cable Kit (00YE644).

The TopSeller models of the System x3250 M6 that are listed in the TopSeller models section are shipped with the following items:

  • Statement of Limited Warranty
  • Important Notices
  • Rack Installation Instructions
  • Documentation CD containing Installation and User's Guide
  • Rack mount kit
  • One 2.8 m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable (models 394316A and 363316A only)

Note: Power cables are not included (except for the models 394316A and 363316A); see Power supplies and cables for ordering information.

Processors

The System x3250 M6 server supports one processor. The following table lists the specifications of the processors that are available for the System x3250 M6.

Table 6. Processor specifications (Hyper-Threading [HT], Turbo Boost [TB], Virtualization Technology [VT])
Processor
model
Core frequency
(Base / TB Max)
Cores /
Threads
Cache Max DDR4
frequency
TDP HT TB VT-x VT-d
Intel Xeon processors
E3-1220 v5 3 / 3.5 GHz 4 / 4 8 MB 2133 MHz 80 W No Yes Yes Yes
E3-1230 v5 3.4 / 3.8 GHz 4 / 8 8 MB 2133 MHz 80 W Yes Yes Yes Yes
E3-1240 v5 3.5 / 3.9 GHz 4 / 8 8 MB 2133 MHz 80 W Yes Yes Yes Yes
E3-1240L v5 2.1 / 3.2 GHz 4 / 8 8 MB 2133 MHz 25 W Yes Yes Yes Yes
E3-1260L v5 2.9 / 3.9 GHz 4 / 8 8 MB 2133 MHz 45 W Yes Yes Yes Yes
E3-1270 v5 3.6 / 4 GHz 4 / 8 8 MB 2133 MHz 80 W Yes Yes Yes Yes
E3-1280 v5 3.7 / 4 GHz 4 / 8 8 MB 2133 MHz 80 W Yes Yes Yes Yes
Intel Core processors
i3-6100 3.7 GHz 2 / 4 3 MB 2133 MHz 51 W Yes No Yes Yes
i3-6100T 3.2 GHz 2 / 4 3 MB 2133 MHz 35 W Yes No Yes Yes
i3-6300 3.8 GHz 2 / 4 4 MB 2133 MHz 51 W Yes No Yes Yes
i3-6300T 3.3 GHz 2 / 4 4 MB 2133 MHz 35 W Yes No Yes Yes
i3-6320 3.9 GHz 2 / 4 4 MB 2133 MHz 51 W Yes No Yes Yes
Intel Pentium processors
G4400 3.3 GHz 2 / 2 3 MB 2133 MHz 54 W No No Yes Yes
G4400T 2.9 GHz 2 / 2 3 MB 2133 MHz 35 W No No Yes Yes
G4500 3.5 GHz 2 / 2 3 MB 2133 MHz 51 W No No Yes Yes
G4500T 3 GHz 2 / 2 3 MB 2133 MHz 35 W No No Yes Yes
G4520 3.6 GHz 2 / 2 3 MB 2133 MHz 51 W No No Yes Yes
Intel Celeron processors
G3900 2.8 GHz 2 / 2 2 MB 1866 MHz 51 W No No Yes Yes
G3900T 2.6 GHz 2 / 2 2 MB 1866 MHz 35 W No No Yes Yes
G3920 2.9 GHz 2 / 2 2 MB 1866 MHz 51 W No No Yes Yes

System x3250 M6 server models come standard with one processor. The following table lists feature codes for the processors that are available for the System x3250 M6.

Table 7. Processor options
Description Feature code
Intel Xeon processors
Intel Xeon Processor E3-1220 v5 3.0GHz 2133MHz 4C/4T (80W) ATBA
Intel Xeon Processor E3-1230 v5 3.4GHz 2133MHz 4C/8T (80W) ATB9
Intel Xeon Processor E3-1240 v5 3.5GHz 2133MHz 4C/8T (80W) ATB8
Intel Xeon Processor E3-1240L v5 2.1GHz 2133MHz 4C/8T (25W) ATBC
Intel Xeon Processor E3-1260L v5 2.9GHz 2133MHz 4C/8T (45W) ATBB
Intel Xeon Processor E3-1270 v5 3.6GHz 2133MHz 4C/8T (80W) ATB7
Intel Xeon Processor E3-1280 v5 3.7GHz 2133MHz 4C/8T (80W) ATB6
Intel Core processors
Intel Core i3-6100 3.7GHz 2133MHz 2C/4T (51W) ATBG
Intel Core i3-6100T 3.2GHz 2133MHz 2C/4T (35W) ATBH
Intel Core i3-6300 3.8GHz 2133MHz 2C/4T (51W) ATBE
Intel Core i3-6300T 3.3GHz 2133MHz 2C/4T (35W) ATBF
Intel Core i3-6320 3.9GHz 2133MHz 2C/4T (51W) ATBD
Intel Pentium processors
Intel Pentium G4400 3.3GHz 2133MHz 2C/2T (54W) ATBM
Intel Pentium G4400T 2.9GHz 2133MHz 2C/2T (35W) ATBN
Intel Pentium G4500 3.5GHz 2133MHz 2C/2T (51W) ATBK
Intel Pentium G4500T 3.0GHz 2133MHz 2C/2T (35W) ATBL
Intel Pentium G4520 3.6GHz 2133MHz 2C/2T (51W) ATBJ
Intel Celeron processors
Intel Celeron G3900 2.8GHz 2133MHz 2C/2T (51W) ATBQ
Intel Celeron G3900T 2.6GHz 2133MHz 2C/2T (35W) ATBR
Intel Celeron G3920 2.9GHz 2133MHz 2C/2T (51W) ATBP

Memory

Lenovo DDR4 memory is compatibility tested and tuned for optimal System x performance and reliability. Lenovo DDR4 memory has a unique signature programmed into the DIMM, which enables System x servers to verify whether the memory installed is qualified and supported. From a service and support standpoint, Lenovo memory automatically assumes the system warranty, and Lenovo provides service and support worldwide.

The System x3250 M6 server has four DIMM slots, and it supports DDR4 UDIMMs with ECC memory protection. The processor has two memory channels and supports two DIMMs per channel.

The following rules apply when selecting the memory configuration:

  • The server supports memory configurations with 1, 2, 3, or 4 UDIMMs.
  • The server supports up to 2133 MHz memory speeds for one DIMM per channel and two DIMMs per channel configurations, provided that the processors support this memory speed (see Processors for details).

The following table summarizes memory speeds and capacities that are supported by the System x3250 M6 server.

Table 8. System x3250 M6 maximum memory speeds and capacities
DIMMs per channel
UDIMM
Memory bus speed Maximum capacity
1 DPC 2133 MHz 32 GB (2x 16 GB)
2 DPC 2133 MHz 64 GB (4x 16 GB)

The following table lists memory options available for the System x3250 M6 server.

Table 9. Memory options
Description Part number Feature code Maximum supported
UDIMMs - 2133 MHz
4GB (1x4GB, 1Rx8, 1.2V) PC4-17000 DDR4 2133MHz LP ECC UDIMM 46W0809 ATPT 4
8GB (1x8GB, 2Rx8, 1.2V) PC4-17000 DDR4 2133MHz LP ECC UDIMM 46W0813 ATPU 4
16GB (1x16GB, 2Rx8, 1.2V) PC4-17000 DDR4 2133MHz LP ECC UDIMM 46W0817 ATRZ 4

Internal storage

The System x3250 M6 server supports the following internal drive bay configurations:

  1. 4x 2.5-inch SAS/SATA hot-swap drive bay server models that can be upgraded to 8x 2.5-inch SAS/SATA hot-swap drive bays
  2. 4x 3.5-inch SAS/SATA hot-swap drive bay server models
  3. 4x 2.5-inch SATA Simple Swap drive bay server models that can be upgraded to 8x 2.5-inch SATA Simple Swap drive bays
  4. 4x 3.5-inch SATA Simple Swap drive bay server models

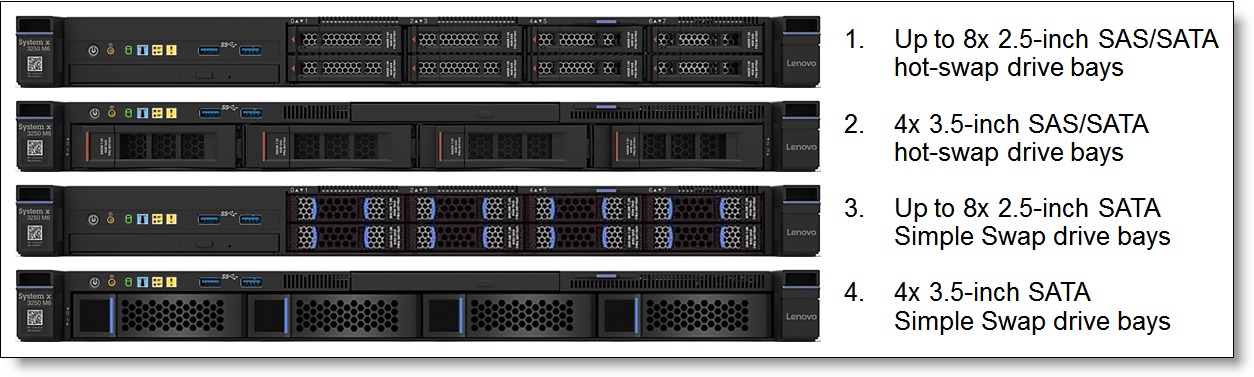

The following figure shows these configurations.

Internal drive configurations
Figure 6. Internal drive configurations

All server models of the System x3250 M6 support an optional optical drive.

The following table shows the internal storage options available for the System x3250 M6 server.

Table 10. Internal storage options
Description Part number Feature code Maximum supported
2.5-inch base drive kits
2.5" Hot Swap Hardware RAID Kit None* ATA0 1
2.5" Simple Swap Hardware RAID Kit None* AT9Y 1
2.5" Simple Swap Software RAID Kit None* AT9X 1
3.5-inch base drive kits
3.5" Hot Swap Hardware RAID Kit None* AT9W 1
3.5" Simple Swap Hardware RAID Kit None* AT9V 1
3.5" Simple Swap Software RAID Kit None* AT9U 1
2.5-inch upgrade drive kits (require the 2.5-inch base drive kit)
2.5" Hot Swap 4 to 8 Hard Drive Upgrade Kit 00YE607 ATA1 1
2.5" Simple Swap 4 to 8 Hard Drive Upgrade Kit 00YE605 AT9Z 1

* Available in standard or CTO (configure to order) models, or both.

Base drive kits are always factory installed in either standard or custom (CTO) models. Upgrade drive kits can be factory installed or can be installed as a field upgrade for supported standard or custom models.

The following table lists possible internal storage configurations.

Table 11. Internal storage configurations (FC=Feature Code, PN=Part Number)
Drive bay configuration Storage
controller*
Drive kits required
Hot-swap SAS/SATA drive bays
4x 2.5-inch SAS/SATA
hot-swap
1x M1210; or
1x RAID or HBA
(PCIe 3.0 x8)
Factory installed:
  • 1x 2.5" Hot Swap Hardware RAID Kit (FC ATA0)
8x 2.5-inch SAS/SATA
hot-swap
1x RAID or HBA
(PCIe 3.0 x8)
Factory installed:
  • 1x 2.5" Hot Swap Hardware RAID Kit (FC ATA0); and
  • 1x 2.5" Hot Swap 4 to 8 Hard Drive Upgrade Kit (FC ATA1)
Field upgrade for the 4-drive bay model:
  • 1x 2.5" Hot Swap 4 to 8 Hard Drive Upgrade Kit (PN 00YE607)
4x 3.5-inch SAS/SATA
hot-swap
1x M1210; or
1x RAID or HBA
(PCIe 3.0 x8)
Factory installed:
  • 1x 3.5" Hot Swap Hardware RAID Kit (FC AT9W)
Simple Swap SATA drive bays
4x 2.5-inch SATA
Simple Swap
1x C110** Factory installed:
  • 1x 2.5" Simple Swap Software RAID Kit (FC AT9X)
1x M1210; or
1x RAID or HBA
(PCIe 3.0 x8)
Factory installed:
  • 1x 2.5" Simple Swap Hardware RAID Kit (FC AT9Y)
8x 2.5-inch SATA
Simple Swap
1x RAID or HBA
(PCIe 3.0 x8)
Factory installed:
  • 1x 2.5" Simple Swap Hardware RAID Kit (FC AT9Y); and
  • 1x 2.5" Simple Swap 4 to 8 Hard Drive Upgrade Kit (FC AT9Z)
Field upgrade for the 4-drive bay model:
  • 1x 2.5" Simple Swap 4 to 8 Hard Drive Upgrade Kit (PN 00YE605)
4x 3.5-inch SATA
Simple Swap
1x C110** Factory installed:
  • 1x 3.5" Simple Swap Software RAID Kit (FC AT9U)
1x M1210; or
1x RAID or HBA
(PCIe 3.0 x8)
Factory installed:
  • 1x 3.5" Simple Swap Hardware RAID Kit (FC AT9V)

* In the Storage controller column, RAID or HBA (PCIe 3.0 x8) means any supported PCIe 3.0 x8 controller for internal storage: M1215, M5210, or N2215.
** The x3250 M6 server models that use the ServeRAID C110 do not support an upgrade to a hardware RAID controller.

Controllers for internal storage

The following table lists the storage controllers and the additional options used for the internal storage of the System x3250 M6 server.

Table 12. RAID controllers and HBAs for internal storage
Description Part number Feature code Maximum supported
Onboard 6 Gbps SATA controller
ServeRAID C110 Software RAID None# ATS0 1
12 Gbps SAS/6 Gbps SATA controllers
ServeRAID M1210 SAS/SATA Controller 00JY194 ATPV 1
ServeRAID M1215 SAS/SATA Controller 46C9114 A45W 1
ServeRAID M5210 SAS/SATA Controller 46C9110 A3YZ 1
N2215 SAS/SATA HBA 47C8675 A3YY 1
Hardware upgrades for the M5210 (per one controller)
ServeRAID M5200 Series 1GB Cache/RAID 5 Upgrade 47C8656 A3Z0 1
ServeRAID M5200 Series 1GB Flash/RAID 5 Upgrade 47C8660 A3Z1 1
ServeRAID M5200 Series 2GB Flash/RAID 5 Upgrade 47C8664 A3Z2 1
ServeRAID M5200 Series 4GB Flash/RAID 5 Upgrade 47C8668 A3Z3 1
Features on Demand upgrades for the M5210 (system-wide)**
ServeRAID M5200 Series Zero Cache/RAID 5 Upgrade 47C8708 A3Z6 1
ServeRAID M5200 Series RAID 6 Upgrade 47C8706 A3Z5 1*
ServeRAID M5200 Series Performance Accelerator 47C8710 A3Z7 1*
ServeRAID M5200 Series SSD Caching Enabler 47C8712 A3Z8 1*
Features on Demand upgrades for the M1215 (system-wide)***
ServeRAID M1200 Zero Cache/RAID 5 Upgrade 00AE930 A5H5 1

# ServeRAID C110 is an onboard hardware-assist, software RAID feature (Intel Rapid Storage Technology Enterprise [RSTe]) integrated into the Intel C232 Platform Controller Hub (PCH).
* Requires cache memory upgrade (47C8656, 47C8660, 47C8664, or 47C8668).
** One FoD upgrade enables the feature on all ServeRAID M5200 Series adapters (M5210, M5225) installed in the server.
*** One FoD upgrade enables the feature on all ServeRAID M1200 Series adapters (M1210, M1215) installed in the server.

Configuration notes:

  • The onboard ServeRAID C110 controller does not consume a PCIe slot.
  • The ServeRAID M1210 controller is supported only in the dedicated PCIe slot 1.
  • Other controllers for internal storage (M1215, M5210, N2215) are supported only in the PCIe slot 2.
  • The C110, M1210, M1215, M5210, and N2215 controllers are mutually exclusive, that is, only one of them can be selected in the configuration.
  • Models of the System x3250 M6 that use the ServeRAID C110 controller do not support an upgrade to a hardware RAID controller.

The following table summarizes features of supported storage controllers.

Table 13. Storage controller features and specifications summary
Feature C110 M1210 M1215 M5210 N2215
Part number None 00JY194 46C9114 46C9110 47C8675
Form factor Onboard Custom PCIe low profile PCIe low profile PCIe low profile
Controller chip Not applicable LSI SAS3004 LSI SAS3008 LSI SAS3108 LSI SAS3008
Host interface Not applicable PCIe 3.0 x4 PCIe 3.0 x8 PCIe 3.0 x8 PCIe 3.0 x8
Port interface 6 Gbps SATA 12 Gbps SAS 12 Gbps SAS 12 Gbps SAS 12 Gbps SAS
Number of ports 4 4 8 8 8
Port connectors Custom 1x Mini-SAS HD x4
(SFF-8643)
2x Mini-SAS HD x4
(SFF-8643)
2x Mini-SAS HD x4
(SFF-8643)
2x Mini-SAS HD x4
(SFF-8643)
Drive interface SATA SAS, SATA SAS, SATA SAS, SATA SAS, SATA
Drive type HDD, SSD HDD, SSD HDD, SSD HDD, SSD HDD, SSD
Drive form factor SFF, LFF SFF, LFF SFF, LFF SFF, LFF SFF, LFF
Hot-swap drive support No Yes Yes Yes Yes
Maximum number of devices 4 4 32 (RAID); 64 (JBOD) 240 1024
RAID levels 0/1/10/5 0/1/10;
Optional 5/50 (00AE930)
0/1/10;
Optional 5/50 (00AE930)
0/1/10; Optional 5/50
(RAID 5 FoD, 47C8708,
or cache upgrades);
Optional 6/60 (47C8706)
None
JBOD mode Yes Yes Yes Yes (without cache) Yes
Cache None None None
  • 1 GB no backup
    (47C8656)
  • 1 GB flash backup
    (47C8660)
  • 2 GB flash backup
    (47C8664)
  • 4 GB flash backup
    (47C8668)
None
Performance Accelerator (FastPath) No No No Optional (47C8710) No
SSD Caching (CacheCade Pro 2.0) No No No Optional (47C8712) No

Important: ServeRAID C110 is not supported by virtualization hypervisors, including VMware vSphere (ESXi), Linux KVM, Xen, and Microsoft Hyper-V.

For more information, see the list of Product Guides in the RAID adapters category:
https://lenovopress.com/servers/options/raid

The following table lists supported combinations of the storage controllers and drive types for the System x3250 M6 drive bay configurations.

Table 14. Storage controllers, drive types, and internal drive bays
Drive bays Storage
Controller
Drive type
SAS
HDD
NL SAS
HDD
NL SATA
HDD
SATA
SSD
SAS/SATA hot-swap

4x 2.5-inch SAS/SATA hot-swap

C110 No No No No
M1210 Yes Yes Yes Yes
M1215, M5210, N2215 Yes Yes Yes Yes
8x 2.5-inch SAS/SATA hot-swap C110 No No No No
M1210 No No No No
M1215, M5210, N2215 Yes Yes Yes Yes

4x 3.5-inch SAS/SATA hot-swap

C110 No No No No
M1210 No Yes Yes No
M1215, M5210, N2215 No Yes Yes No
SATA Simple Swap
4x 2.5-inch SATA Simple Swap C110 No No Yes No
M1210 No No Yes No
M1215, M5210, N2215 No No Yes No
8x 2.5-inch SATA Simple Swap C110 No No No No
M1210 No No No No
M1215, M5210, N2215 No No Yes No
4x 3.5-inch SATA Simple Swap C110 No No Yes No
M1210 No No Yes No
M1215, M5210, N2215 No No Yes No

Drives for internal storage

The following tables list currently available drive options for internal storage of the System x3250 M6 server.

Table 15. Internal drive options: 2.5-inch hot-swap drives
Description Part number Feature code Maximum supported
2.5-inch hot-swap HDDs - 12 Gbps SAS
300GB 10K 12Gbps SAS 2.5" G3HS HDD 00WG685 AT89 8
300GB 15K 12Gbps SAS 2.5" G3HS HDD 00WG660 AT84 8
600GB 10K 12Gbps SAS 2.5" G3HS HDD 00WG690 AT8A 8
600GB 15K 12Gbps SAS 2.5" G3HS HDD 00WG665 AT85 8
900GB 10K 12Gbps SAS 2.5" G3HS HDD 00WG695 AT8B 8
1.2TB 10K 12Gbps SAS 2.5" G3HS HDD 00WG700 AT8C 8
1.8TB 10K 12Gbps SAS 2.5" G3HS 512e HDD 00NA271 ASBM 8
2.5-inch hot-swap HDDs - 12 Gbps NL SAS
1TB 7.2K 12Gbps NL SAS 2.5'' G3HS HDD 00NA491 AT7Z 8
2TB 7.2K 12Gbps NL SAS 2.5'' G3HS HDD 00NA496 AT80 8
2.5-inch hot-swap HDDs - 6 Gbps NL SATA
1TB 7.2K 6Gbps NL SATA 2.5" G3HS HDD 00AJ141 A4TX 8
2TB 7.2K 6Gbps NL SATA 2.5'' G3HS 512e HDD 00NA526 AT81 8
2.5-inch hot-swap SSDs - Enterprise Performance 6 Gbps SATA
Intel S3710 200GB Enterprise Performance SATA G3HS 2.5" SSD 00YC320 AT9C 8
Intel S3710 400GB Enterprise Performance SATA G3HS 2.5" SSD 00YC325 AT9D 8
Intel S3710 800GB Enterprise Performance SATA G3HS 2.5" SSD 00YC330 AT9E 8
2.5-inch hot-swap SSDs - Enterprise Mainstream 6 Gbps SATA
Intel S3610 480GB Enterprise Mainstream SATA G3HS 2.5" SSD 00YK212 AU3C 8
Intel S3610 800GB Enterprise Mainstream SATA G3HS 2.5" SSD 00YK217 AU3D 8
Intel S3610 1.2TB Enterprise Mainstream SATA G3HS 2.5" SSD 00YK222 AU3E 8
Intel S3610 1.6TB Enterprise Mainstream SATA G3HS 2.5" SSD 00YK227 AU3F 8
2.5-inch hot-swap SSDs - Enterprise Entry 6 Gbps SATA
240GB Enterprise Entry SATA G3HS 2.5" SSD 00YC390 AT8S 8
480GB Enterprise Entry SATA G3HS 2.5" SSD 00YC395 AT8T 8
960GB Enterprise Entry SATA G3HS 2.5" SSD 00YC400 AT8U 8
Intel S3510 120GB Enterprise Entry SATA G3HS 2.5" SSD 00WG620 AT93 8
Intel S3510 240GB Enterprise Entry SATA G3HS 2.5" SSD 00WG625 AT94 8
Intel S3510 480GB Enterprise Entry SATA G3HS 2.5" SSD 00WG630 AT95 8
Intel S3510 800GB Enterprise Entry SATA G3HS 2.5" SSD 00WG635 AT96 8
Intel S3520 240GB Enterprise Entry SATA G3HS 2.5" SSD 01GR726 AUEM 8
Intel S3520 480GB Enterprise Entry SATA G3HS 2.5" SSD 01GR731 AUEP 8
Intel S3520 960GB Enterprise Entry SATA G3HS 2.5" SSD 01GR736 AUER 8
PM863a 240GB Enterprise Entry SATA G3HS 2.5" SSD 01GR836 AVHP 8
PM863a 480GB Enterprise Entry SATA G3HS 2.5" SSD 01GR841 AVHQ 8
PM863a 960GB Enterprise Entry SATA G3HS 2.5" SSD 01GR846 AVHR 8
Table 16. Internal drive options: 2.5-inch simple-swap SATA drives
Description Part number Feature code Maximum supported
1TB 7.2K 6Gbps NL SATA 2.5" G3SS HDD 00NA622 ASLD 8
2TB 7.2K 6Gbps NL SATA 2.5'' G3SS 512e HDD 00NA536 AT82 8
Table 17. Internal drive options: 3.5-inch hot-swap drives
Description Part number Feature code Maximum supported
3.5-inch hot-swap HDDs - 12 Gbps NL SAS
2TB 7.2K 12Gbps NL SAS 3.5" G2HS 512e HDD 00FN188 A5VP 4
4TB 7.2K 12Gbps NL SAS 3.5" G2HS 512e HDD 00FN208 A5VQ 4
6TB 7.2K 12Gbps NL SAS 3.5" G2HS 512e HDD 00FN228 A5VR 4
8TB 7.2K 12Gbps NL SAS 3.5" G2HS 512e HDD 00WH121 ATRS 4
3.5-inch hot-swap HDDs - 6 Gbps NL SATA
500GB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 81Y9786 A22Y 4
2TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 81Y9794 A22T 4
2TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00FN113 A5VD 4
4TB 7.2K 6Gbps NL SATA 3.5" G2HS HDD 49Y6002 A3W9 4
4TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00FN143 A5VH 4
6TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00FN173 A5VM 4
8TB 7.2K 6Gbps NL SATA 3.5" G2HS 512e HDD 00WH126 ATRT 4
3.5-inch hot-swap SSDs - Enterprise Mainstream 6 Gbps SATA
Intel S3610 480GB Enterprise Mainstream SATA HS 3.5" SSD 00YK237 AU3H 4
Intel S3610 800GB Enterprise Mainstream SATA HS 3.5" SSD 00YK242 AU3J 4
Intel S3610 1.2TB Enterprise Mainstream SATA HS 3.5" SSD 00YK247 AU3K 4
Intel S3610 1.6TB Enterprise Mainstream SATA HS 3.5" SSD 00YK252 AU3L 4
3.5-inch hot-swap SSDs - Enterprise Entry 6 Gbps SATA
Intel S3520 240GB Enterprise Entry SATA HS 3.5" SSD 01GR741 AUF0 4
Intel S3520 480GB Enterprise Entry SATA HS 3.5" SSD 01GR746 AUF1 4
Intel S3520 960GB Enterprise Entry SATA HS 3.5" SSD 01GR751 AUF2 4
PM863a 240GB Enterprise Entry SATA HS 3.5" SSD 01GR899 AVHS 4
PM863a 480GB Enterprise Entry SATA HS 3.5" SSD 01GR851 AVHT 4
PM863a 960GB Enterprise Entry SATA HS 3.5" SSD 01GR856 AVHU 4
Table 18. Internal drive options: 3.5-inch simple-swap SATA drives
Description Part number Feature code Maximum supported
500GB 7.2K 6Gbps NL SATA 3.5" G2SS HDD 81Y9802 A22U 4
2TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD 81Y9810 A22W 4
2TB 7.2K 6Gbps NL SATA 3.5" G2SS 512e HDD 00FN118 A5VE 4
4TB 7.2K 6Gbps NL SATA 3.5" G2SS HDD 49Y6012 A3WA 4
4TB 7.2K 6Gbps NL SATA 3.5" G2SS 512e HDD 00FN148 A5VJ 4

Optical drives

The System x3250 M6 server supports the optical drive options listed in the following table.

Table 19. Optical drives
Description Part number Feature code Maximum supported
Optical drives
Ultraslim 9.5mm SATA DVD-ROM 00AM066 A5KG 1
Ultraslim 9.5mm SATA Multi Burner 00AM067 A5KH 1
Optical drive cable (Required)
x3250 Optical Disc Drive Cable Kit 00YE644 ATAB 1

Ultraslim 9.5mm SATA DVD-ROM (00AM066) supports the following media and speeds for reading:

  • CD-ROM 24X
  • CD-DA (DAE) 24X
  • CD-R 24X
  • CD-RW 24X
  • DVD-ROM 8X
  • DVD-R 8X
  • DVD+R 8X
  • DVD-R DL 6X
  • DVD+R DL 8X
  • DVD-RW 8X
  • DVD+RW 8X
  • DVD-RAM (4.7 GB) 5X

Ultraslim 9.5mm SATA Multi Burner (00AM067) supports the same media and speeds for reading as DVD-ROM (part number 00AM066). This drive also supports the following media and speeds for writing:

  • CD-R 24X
  • CD-RW 4X
  • High-Speed CD-RW 10X
  • Ultra Speed CD-RW 24X
  • DVD-R 8X
  • DVD+R 8X
  • DVD-R DL 6X
  • DVD+R DL 6X
  • DVD-RW 6X
  • DVD+RW 8X
  • DVD-RAM 5X

I/O expansion

The System x3250 M6 server has two PCIe slots on the riser card that comes standard with all models. The slot form factors are as follows:

  • Slot 1: PCIe 3.0 x8 (x4-wired); dedicated slot for the M1210 adapter
  • Slot 2: PCIe 3.0 x8 (x8-wired), full-height, half-length

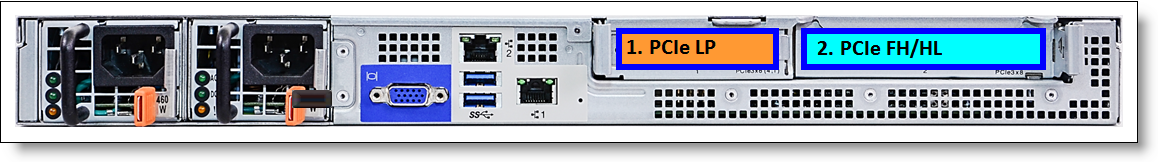

The locations of the PCIe slots are shown in the following figure.

PCIe slot locations
Figure 7. PCIe slot locations

The Serial Port Upgrade Kit listed in the following table is used for mounting the external DB-9 serial port on the rear of the System x3250 M6. This option includes the bracket and the cable. The serial port is mounted in place of the PCIe slot 1, and the M1210 adapter cannot be used.

Table 20. Serial port
Description Part number Feature code Maximum supported
x3250 Serial Port Upgrade Kit 00YE641 ATA8 1

Network adapters

The System x3250 M6 supports two integrated Gigabit Ethernet ports. The integrated network interface controller (NIC) has the following features:

  • An Intel I350-AM2 chip
  • Two Gigabit Ethernet ports (one port is configured as a dedicated or shared management port)
  • NIC Teaming (load balancing and failover)
  • Ethernet features:
    • Compliant with 1 Gb Ethernet IEEE 802.3, 802.3u, and 802.3ab PHY specifications
    • Integrated PHY for 10/100/1000 Mbps for multispeed, full, and half-duplex auto-negotiation
    • Automatic cross-over detection function (MDI/MDI-X)
    • IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
    • IEEE 1588 protocol and 802.1AS time synchronization implementation
    • IEEE802.3az - Energy Efficient Ethernet (EEE)
    • Full wake up support
      • Advanced Power Management (APM) support
      • Advanced Configuration and Power Interface (ACPI) specification v2.0c
      • Magic packet wake-up enable
  • I/O Virtualization Features:
    • Eight transmit (Tx) and receive (Rx) queue pairs per port
    • Flexible port partitioning: 16 virtual functions (VF) with two ports (8 VFs per port)
    • Rx/Tx round-robin scheduling
    • Traffic isolation and traffic steering
    • Virtual machine (VM) to VM packet forwarding (packet loopback)
    • MAC and VLAN anti-spoofing
    • Malicious driver detection
    • Storm control
    • Per-pool statistics, off loads, and jumbo support
    • Independent Function Level Reset (FLR) for physical and virtual functions
    • IEEE 802.1q Virtual Local Area Network (VLAN) support with VLAN tag insertion, stripping, and advanced packet filtering for up to 4096 VLAN tags
    • Mirroring rules
    • Support for simple VEPA
    • VF promiscuous modes
  • Stateless offload and performance features:
    • TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); extended Tx descriptors
    • IPv6 support for IP/TCP and IP/UDP receive checksum offload
    • Tx TCP segmentation offload (IPv4, IPv6)
    • Transmit Segmentation Offloading (TSO)
    • Interrupt throttling control
    • Legacy and Message Signal Interrupt (MSI)
    • Message Signal Interrupt Extension (MSI-X)
    • Receive Side Scaling (RSS) for Windows
    • Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP)
    • Support for packets up to 9.5 KB (jumbo frames)
  • Remote boot options
    • Preboot eXecution Environment (PXE) support
    • Intel iSCSI Remote Boot for Windows, Linux, and VMware

The following table lists additional supported network adapters.

Table 21. Network adapters
Description Part number Feature code Maximum supported
10 Gb Ethernet - PCIe Low Profile or Full Height (supported in the PCIe slot 2)
Emulex VFA5.2 2x10 GbE SFP+ PCIe Adapter 00AG570 AT7S 1*
Intel X710-DA2 2x10GbE SFP+ Adapter 01DA900 AU2Y 1*
Intel X550-T2 Dual Port 10GBase-T Adapter 00MM860 ATPX 1
1 Gb Ethernet - PCIe Low Profile or Full Height (supported in the PCIe slot 2)
Broadcom NetXtreme I Dual Port GbE Adapter 90Y9370 A2V4 1
Intel I350-T2 2xGbE BaseT Adapter 00AG510 A56L 1
Intel I350-T4 4xGbE BaseT Adapter 00AG520 A56M 1
10 GbE SFP+ transceivers and DAC cables (for 10 GbE SFP+ adapters)
Lenovo 10GBASE-SR SFP+ Transceiver 46C3447 5053 Port qty**
Brocade 10Gb SFP+ SR Optical Transceiver 49Y4216 0069 Port qty**
QLogic 10Gb SFP+ SR Optical Transceiver 49Y4218 0064 Port qty**
Lenovo 0.5m Passive SFP+ DAC Cable 00D6288 A3RG Port qty**
Lenovo 1m Passive SFP+ DAC Cable 90Y9427 A1PH Port qty**
Lenovo 1.5m Passive SFP+ DAC Cable 00AY764 A51N Port qty**
Lenovo 2m Passive SFP+ DAC Cable 00AY765 A51P Port qty**
Lenovo 3m Passive SFP+ DAC Cable 90Y9430 A1PJ Port qty**
Lenovo 5m Passive SFP+ DAC Cable 90Y9433 A1PK Port qty**
Lenovo 7m Passive SFP+ DAC Cable 00D6151 A3RH Port qty**

* SFP+ based adapters require supported transceivers or DAC cables that must be purchased for the adapter (See "10 Gb SFP+ transceivers and DAC cables" in the table above).
** The maximum number of transceivers or cables that are supported per adapter equals the quantity of the adapter ports. All adapter ports must have the same type of transceiver or DAC cable selected.

For more information, see the list of Product Guides in the Ethernet adapters category:
http://lenovopress.com/servers/options/ethernet

SAS adapters for external storage

The following table lists SAS RAID controllers and HBAs for external storage attachments that are supported by the System x3250 M6 server.

Table 22. SAS RAID adapters and HBAs for external storage
Description Part number Feature code Maximum supported
12 Gbps SAS RAID adapter - PCIe Low Profile or Full Height (supported in the PCIe slot 2)
ServeRAID M5225-2GB SAS/SATA Controller 00AE938 A5ND 1
Feature on Demand (FoD) upgrades for the M5225 (one per server)*
ServeRAID M5200 Series RAID 6 Upgrade 47C8706 A3Z5 1*
ServeRAID M5200 Series Performance Accelerator 47C8710 A3Z7 1*
ServeRAID M5200 Series SSD Caching Enabler 47C8712 A3Z8 1*
12 Gbps SAS HBAs - PCIe Low Profile or Full Height (supported in the PCIe slot 2)
N2225 SAS/SATA HBA 00AE912 A5M0 1

* One FoD upgrade for the M5225 activates the feature on all M5200 series controllers (M5210, M5225) installed in a server.

The following table summarizes features of supported HBAs.

Table 23. SAS RAID controller and HBA features and specifications summary  (PN = Part number)
Feature M5225-2GB N2225
Part number 00AE938 00AE912
Form factor Low profile Low profile
Controller chip LSI SAS3108 LSI SAS3008
Host interface PCIe 3.0 x8 PCIe 3.0 x8
Port interface 12 Gbps SAS 12 Gbps SAS
Number of external ports 8 8
External port connectors 2x Mini-SAS HD (SFF-8644) 2x Mini-SAS HD (SFF-8644)
Drive interface SAS, SATA SAS, SATA
Drive type HDD, SED, SSD HDD, SSD
Maximum number of devices 240 1024
RAID levels 0/1/10/5/50;
Optional 6/60 (PN 47C8706)
None
JBOD mode No Yes
Cache 2 GB (included) None
Cache protection Flash (included) None
Performance Accelerator (FastPath) Optional (PN 47C8710) None
SSD Caching (CacheCade Pro 2.0) Optional (PN 47C8712) None

For more information about the ServeRAID M5225-2GB, see the Lenovo Press Product Guide:
http://lenovopress.com/tips1258

For more information about SAS HBAs, see the list of Product Guides in the Host bus adapters category:
http://lenovopress.com/servers/options/hba

Fibre Channel host bus adapters

The following table lists Fibre Channel HBAs supported by the System x3250 M6 server.

Table 24. Fibre Channel HBAs
Description Part number Feature code Maximum supported
8 Gb Fibre Channel - PCIe Low Profile or Full Height (supported in the PCIe slot 2)
Emulex 8Gb FC Single-port HBA 42D0485 3580 1
Emulex 8Gb FC Dual-port HBA 42D0494 3581 1
QLogic 8Gb FC Single-port HBA 42D0501 3578 1
QLogic 8Gb FC Dual-port HBA 42D0510 3579 1

For more information, see the list of Product Guides in the Host bus adapters category:
https://lenovopress.com/servers/options/hba

Cooling

The System x3250 M6 server has four non-hot-swap system fans.

The optional thermal kit helps lower fan speeds depending on the environment's temperature to lower acoustic noise and energy use. The following table shows ordering information for the thermal kit option. The kit contains an additional thermal sensor and a sensor cable.

Note: The Thermal Kit does not extend the operating temperature range beyond 35 °C (95 °F).

Table 25. Thermal kit
Description Part number Feature code Maximum supported
Operating Temperature Enhancement Kit 00J6351 A3SD 1

Power supplies and cables

The System x3250 M6 server supports one 300 W AC fixed power supply or up to two 460 W redundant hot-swap power supplies. The power supplies are 80 PLUS Gold certified. Standard and TopSeller models of the System x3250 M6 come with one fixed or hot-swap power supply (model dependent, see Standard models and TopSeller models for details).

The following table lists the hot-swap power supply option for models with one hot-swap power supply. A hot-swap power supply option ships standard with one 2.8m, 10A/100-250V, IEC 320-C13 to C14 rack power cable.

Table 26. Power supplies
Description Part number Feature code Maximum supported
460W Redundant Power Supply 00YD992 ATAD 2

Important: It is highly recommended that customers validate the system configuration for specific power requirements by using the latest version of the Lenovo Power Planner, which is available at:
http://support.lenovo.com/us/en/downloads/ds101155

Standard and TopSeller models of the System x3250 M6 ship without a power cord (except the models 394316A and 363316A). Country-specific line cords or rack power cables listed in the following table should be ordered together with the server.

Table 27. Power cables
Description Part number Feature code
Rack power cables
1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7937 6201
2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable 39Y7938 6204
4.3m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable 39Y7932 6263
Country-specific line cords
Argentina 10A/250V C13 to IRAM 2073 2.8m line cord 39Y7930 6222
Australia/NZ 10A/250V C13 to AS/NZ 3112 2.8m line cord 39Y7924 6211
Brazil 10A/125V C13 to NBR 6147 2.8m line cord 39Y7929 6223
China 10A/250V C13 to GB 2099.1 2.8m line cord 39Y7928 6210
Denmark 10A/250V C13 to DK2-5a 2.8m line cord 39Y7918 6213
European 10A/230V C13 to CEE7-VII 2.8m line cord 39Y7917 6212
India 10A/250V C13 to IS 6538 2.8m line cord 39Y7927 6269
Israel 10A/250V C13 to SI 32 2.8m line cord 39Y7920 6218
Italy 10A/250V C13 to CEI 23-16 2.8m line cord 39Y7921 6217
Japan 12A/125V C13 to JIS C-8303 2.8m line cord 46M2593 A1RE
Korea 12A/250V C13 to KETI 2.8m line cord 39Y7925 6219
South Africa 10A/250V C13 to SABS 164 2.8m line cord 39Y7922 6214
Switzerland 10A/250V C13 to SEV 1011-S24507 2.8m line cord 39Y7919 6216
Taiwan 10A/250V C13 to CNS 10917-3 2.8m line cord 00CG265 6317
United Kingdom 10A/250V C13 to BS 1363/A 2.8m line cord 39Y7923 6215
United States 10A/125V C13 to NEMA 5-15P 4.3m line cord 39Y7931 6207

Integrated virtualization

The System x3250 M6 server supports VMware ESXi installed on a USB memory key. The USB memory key is installed in a USB socket inside the server.

The following table lists virtualization options.

Table 28. Virtualization options
Description Part number Feature code Maximum supported
Blank USB Memory Key 4G SLC for VMware ESXi Downloads 00WH140 ATRM 1

Operating systems

The System x3250 M6 server supports the following operating systems:

  • Microsoft:
    • Microsoft Windows Server 2016
    • Microsoft Windows Server 2012 R2
    • Microsoft Windows Server 2012
  • Red Hat:
    • Red Hat Enterprise Linux 7.3
    • Red Hat Enterprise Linux 7.2
    • Red Hat Enterprise Linux 6.8 Server x64 Edition
    • Red Hat Enterprise Linux 6.7 Server x64 Edition
  • SUSE:
    • SUSE Linux Enterprise Server 12 SP2
    • SUSE Linux Enterprise Server 12 SP1
    • SUSE Linux Enterprise Server 11 for AMD64/EM64T SP4
  • VMware:
    • VMware vSphere 6.5 (ESXi) (planned for later in 1Q 2017)
    • VMware vSphere 6.0 (ESXi) Update 1
    • VMware vSphere 5.5 (ESXi) Update 3

Important: VMware ESXi and other hypervisor support requires a hardware RAID controller or HBA: M1210, M1215, M5210, or N2215. The onboard ServeRAID C110 controller is not supported by VMware ESXi and other hypervisors.

For the latest information about the specific versions and service levels supported and any other prerequisites, see the Operating System Interoperability Guide:
http://lenovopress.com/redposig

Systems management

The System x3250 M6 supports the following systems management tools:

  • Integrated Management Module 2.1
  • Lenovo ToolsCenter
  • Lenovo XClarity Administrator
  • Lenovo XClarity Energy Manager

Integrated Management Module 2.1

The System x3250 M6 server contains an Integrated Management Module II (IMM2.1), which provides advanced service-processor control, monitoring, and an alerting function. If an environmental condition exceeds a threshold or if a system component fails, the IMM2.1 lights LEDs to help you diagnose the problem, records the error in the event log, and alerts you to the problem. Optionally, the IMM2.1 also provides a virtual presence capability for remote server management capabilities.

The IMM2.1 provides remote server management through industry-standard interfaces:

  • Intelligent Platform Management Interface (IPMI) Version 2.0
  • Simple Network Management Protocol (SNMP) Version 3
  • Common Information Model (CIM)
  • Web browser

The optional Integrated Management Module Advanced Upgrade is required to enable the remote presence and blue-screen capture features. The remote presence feature provides the following functions:

  • Remotely viewing video with graphics resolutions up to 1600x1200 at 75 Hz with up to 23 bits per pixel
  • Remotely accessing the server using the keyboard and mouse from a remote client
  • Mapping the CD or DVD drive, diskette drive, and USB flash drive on a remote client, and mapping ISO and diskette image files as virtual drives that are available for use by the server
  • Uploading a diskette image to the IMM memory and mapping it to the server as a virtual drive

The blue-screen capture feature captures the video display contents before the IMM2.1 restarts the server when the IMM2.1 detects an operating system hang condition. A system administrator can use the blue-screen capture to help determine the cause of the hang condition. The following table lists the remote management option.

Table 29. Remote management option
Description Part number Feature code Maximum supported
Integrated Management Module Advanced Upgrade 90Y3901 A1ML 1

Lenovo ToolsCenter

Lenovo offers the following ToolsCenter software tools that can help you set up, use, and maintain the server at no additional cost:

  • Lenovo ToolsCenter Suite

    The ToolsCenter Suite tool is a consolidation of server management tools that helps simplify the management of System x servers. It provides functions to collect full system health information (including health status), configure system setting, update system firmware and drivers, and FoD mass  activation key management for multiple endpoints.

  • Lenovo ServerGuide

    The ServerGuide tool simplifies the process of configuring RAID and installing supported Microsoft Windows Server operating systems and device drivers on a System x server.

  • Lenovo UpdateXpress System Packs

    The UpdateXpress System Packs (UXSPs) are integration-tested bundles that enable customers to maintain their server firmware and device drivers up-to-date and help them avoid unnecessary server outages.

  • Lenovo Dynamic System Analysis

    The Dynamic System Analysis (DSA) pre-boot or standalone diagnostics software speeds up troubleshooting tasks to reduce service time.

For more information and downloads, visit the ToolsCenter web page:
http://support.lenovo.com/us/en/documents/LNVO-center

Lenovo XClarity Administrator

Lenovo XClarity is a centralized systems management solution that helps administrators deliver infrastructure faster. This solution integrates easily with Lenovo x86 servers, Flex System, and RackSwitch switches, providing automated agent-less discovery, monitoring, firmware updates, configuration management, and bare metal deployment of operating systems and hypervisors across multiple systems.

Lenovo XClarity Administrator is an optional software component for the System x3250 M6 which can be downloaded and used at no charge to discover and monitor the x3250 M6 and manage firmware upgrades for them.

If software support is required for Lenovo XClarity Administrator, or Lenovo XClarity Administrator premium features (such as configuration management and operating system deployment) are required, or both, Lenovo XClarity Pro software subscription should be ordered. Lenovo XClarity Pro is licensed on a per managed system basis, that is, each managed Lenovo system requires a license.

The following table lists the geo-specific Lenovo XClarity software license options.

Table 30. Lenovo XClarity software options
Description Part number
(NA, AP, Japan)*
Part number
(EMEA, LA)**
Quantity
Lenovo XClarity Pro, per Mngd Server w/1 Yr SW S&S 00MT201 00MT207 1
Lenovo XClarity Pro, per Mngd Server w/3 Yr SW S&S 00MT202 00MT208 1
Lenovo XClarity Pro, per Mngd Server w/5 Yr SW S&S 00MT203 00MT209 1

* NA = North America; AP = Asia Pacific
** EMEA = Europe, Middle East, Africa; LA = Latin America

Lenovo XClarity Administrator offers the following standard features that are available at no charge:

  • Auto-discovery and monitoring of Lenovo x86 servers, RackSwitch switches, and Flex System chassis
  • Firmware updates and compliance enforcement
  • External alerts and notifications via SNMP traps, syslog remote logging, and e-mail
  • Secure connections to managed endpoints
  • NIST 800-131A or FIPS 140-2 compliant cryptographic standards between the management solution and managed endpoints
  • Integration into existing higher level management systems such as cloud automation and orchestration tools through REST APIs, providing extensive external visibility and control over hardware resources
  • An intuitive, easy-to-use GUI
  • Scripting with Windows PowerShell, providing command-line visibility and control over hardware resources

Lenovo XClarity Administrator offers the following premium features that require an optional Pro license:

  • Pattern-based configuration management that allows to define configurations once and apply repeatedly without errors when deploying new servers or redeploying existing servers without disrupting the fabric
  • Bare-metal deployment of operating systems and hypervisors to streamline infrastructure provisioning

In addition, Lenovo XClarity Administrator offers two software plug-in modules (Lenovo XClarity Integrators) at no charge (if software support is required, a Lenovo XClarity Pro software subscription license should be ordered):

  • Lenovo XClarity Integrator for Microsoft System Center
  • Lenovo XClarity Integrator for VMware vCenter

Lenovo XClarity Integrators allow administrators to manage physical infrastructure from leading external virtualization management software tools from Microsoft and VMware. Lenovo XClarity Integrators offer the following additional features:

  • Ability to discover, manage, and monitor Lenovo server hardware from VMware vCenter or Microsoft System Center
  • Deployment of firmware updates and configuration patterns to System x M5, M6, and X6 rack servers and Flex System from the virtualization management tool
  • Non-disruptive server maintenance in clustered environments that reduces workload downtime by dynamically migrating workloads from affected hosts during rolling server updates or reboots
  • Greater service level uptime and assurance in clustered environments during unplanned hardware events by dynamically triggering workload migration from impacted hosts when impending hardware failures are predicted

For more information, refer to the Lenovo XClarity Administrator Product Guide:
http://lenovopress.com/tips1200

Rack installation

The System x3250 M6 server models listed in "Standard models" and "TopSeller models" come with the rail kit. In addition, an optional lockable front bezel listed in the following table can be ordered for the System x3250 M6, if needed.

Table 31. Rack installation options
Description Part number Feature code Maximum supported
Lockable front bezel
x3250 Security Bezel 00YE642 ATA9 1

Physical specifications

The System x3250 M6 server has the following dimensions and weight (approximate):

  • Height: 43 mm (1.7 in)
  • Width: 435 mm (17.1 in)
  • Depth: 576 mm (22.7 in)
  • Weight:
    • Minimum configuration: 8.6 kg (19.0 lb)
    • Maximum configuration: 13.7 kg (30.1 lb)

Operating environment

The System x3250 M6 server is supported in the following environment:

  • Air temperature:
    • Server on: 10 °C to 35 °C (50 °F to 95 °F)
    • Server off: 10 °C to 43 °C (50 °F to 109 °F)
    • Maximum altitude: 3,000 m (9,842 ft)
    • Shipment: -40 °C to +60 °C (-40 °F to 140 °F) at up to 10,000 m (32,808 ft)
  • Humidity:
    • Server on: 8% to 80%, maximum dew point 24 °C
    • Server off: 8% to 85%, maximum dew point 27 °C
    • Shipment: 5% to 100%, maximum dew point 29 °C
  • Electrical:
    • Models with 300 W AC fixed power supply:
      • 100 - 127 V AC (nominal); 50 Hz or 60 Hz; 4 A
      • 200 - 240 V AC (nominal); 50 Hz or 60 Hz; 2 A
    • Models with 460 W AC hot-swap power supplies:
      • 100 - 127 V AC (nominal); 50 Hz or 60 Hz; 5.6 A
      • 200 - 240 V AC (nominal); 50 Hz or 60 Hz; 2.8 A
      Input kilovolt-amperes (kVA) (approximately):
      • Base configuration: 0.22 kVA
      • Maximum configuration: 0.35 kVA
  • BTU output:
    • Base configuration: 759 Btu/hr (222 watts)
    • Maximum configuration: 1197 Btu/hr (351 watts)
  • Noise level:
    • 5.4 bels (operating)
    • 5.4 bels (idle)
Warranty

The System x3250 M6 has a one-year (Machine Type 3943) or three-year (Machine Type 3633) warranty with 24x7 standard call center support and 9x5 Next Business Day onsite coverage. Also available are Lenovo Services warranty maintenance upgrades and post-warranty maintenance agreements, with a well-defined scope of services, including service hours, response time, term of service, and service agreement terms and conditions.

Lenovo warranty service upgrade offerings are country-specific. Not all warranty service upgrades are available in every country. For more information about Lenovo warranty service upgrade offerings that are available in your country, visit the Lenovo Services website:
https://www-304.ibm.com/sales/gss/download/spst/servicepac

The following table explains warranty service definitions in more detail.

Table 32. Warranty service definitions
Term Description
On-site service A service technician will arrive at the client’s location for equipment service.
24x7x2 hour A service technician is scheduled to arrive at the client’s location within two hours after remote problem determination is completed. Lenovo provides service around the clock, every day, including Lenovo holidays.
24x7x4 hour A service technician is scheduled to arrive at the client’s location within four hours after remote problem determination is completed. Lenovo provides service around the clock, every day, including Lenovo holidays.
9x5x4 hour A service technician is scheduled to arrive at the client’s location within four business hours after remote problem determination is completed. Lenovo provides service 8:00 am - 5:00 pm in the client's local time zone, Monday-Friday, excluding Lenovo holidays. For example, if a customer reports an incident at 3:00 pm on Friday, the technician will arrive by 10:00 am the following Monday.
9x5 next business day A service technician is scheduled to arrive at the client’s location on the business day after remote problem determination is completed. Lenovo provides service 8:00 am - 5:00 pm in the client's local time zone, Monday - Friday, excluding Lenovo holidays. Calls received after 4:00 pm local time require an extra business day for service dispatch. Next business day service is not guaranteed.
Committed Repair Problems receive priority handling so that repairs are completed within the committed time of 6, 8, or 24 hours. Lenovo provides service 24 hours/day, every day, including Lenovo holidays.

The following Lenovo warranty service upgrades are available:

  • Warranty and maintenance service upgrades:
    • Up to five years of 9x5 or 24x7 service coverage
    • Onsite response from next business day to 2 or 4 hours
    • Committed repair service
    • Warranty extension of up to 5 years
    • Post warranty extensions
  • Committed Repair Service

    Committed Repair Services enhances the level of Warranty Service Upgrade or Post Warranty/Maintenance Service offering associated with the selected systems. Offerings vary and are available in select countries.

    • Priority handling to meet defined time frames to restore the failing machine to good working condition
    • Committed repair service levels are measured within the following coverage hours:
      • 24x7x6: Service performed 24 hours per day, 7 days per week, within 6 hours
      • 24x7x8: Service performed 24 hours per day, 7 days per week, within 8 hours
      • 24x7x24: Service performed 24 hours per day, 7 days per week, within 24 hours
  • Hard Drive Retention

    Lenovo’s Hard Drive Retention service is a multi-drive hard drive retention offering that ensures your data is always under your control, regardless of the number of hard drives that are installed in your Lenovo server. In the unlikely event of a hard drive failure, you retain possession of your hard drive while Lenovo replaces the failed drive part. Your data stays safely on your premises, in your hands. The Hard Drive Retention service can be purchased in convenient bundles with our warranty upgrades and extensions.

  • Microcode Support

    Keeping microcode current helps prevent hardware failures and security exposure. There are two levels of service: analysis of the installed base and analysis and update where required. Offerings vary by country and can be bundled with other warranty upgrades and extensions.

  • Remote Technical Support Services (RTS)

    RTS provides comprehensive technical call center support for covered servers, storage, operating systems, and applications. Providing a single source for support of hardware and software issues, RTS can reduce problem resolution time, decreasing the cost to address technical problems and increasing uptime. Offerings are available for Windows, Linux, VMware, Microsoft business applications, Lenovo System x storage devices, and IBM OEM storage devices.

Regulatory compliance

The System x3250 M6 server conforms to the following regulations:

  • AS/NZS CISPR 22, Class A (Australia/New Zealand)
  • BSMI CNS 13438, Class A; CNS 14336 (Taiwan)
  • CCC GB 4943.1, GB 17625.1, GB 9254 Class A (China)
  • CE Mark (European Union)
  • CISPR 22, Class A
  • EAC (Russia)
  • EN55022, Class A
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • Energy Star 2.0 (models with hot-swap power supplies)
  • FCC Part 15, Class A (United States)
  • GS/TUV (Germany)
  • ICES-003/NMB-03, Class A (Canada)
  • IEC/EN60950-1
  • KC Mark (Korea)
  • NOM-019 (Mexico)
  • Reduction of Hazardous Substances (ROHS)
  • TUV S (Argentina)
  • UL/CSA IEC 60950-1
  • VCCI, Class A (Japan)

External drive enclosures

The following table lists the 6 Gbps SAS external drive enclosures that are offered by Lenovo that can be used with the System x3250 M6 for storage expansion.

Table 33. E1012 and E1024 external drive enclosure models
Description Part number
Lenovo Storage E1012 LFF Disk Expansion Single SAS IO Module, Rail Kit, 9x5 NBD 64111B1
Lenovo Storage E1012 LFF Disk Expansion Dual SAS IO Module, Rail Kit, 9x5 NBD 64111B2
Lenovo Storage E1024 SFF Disk Expansion Single SAS IO Module, Rail Kit, 9x5 NBD 64111B3
Lenovo Storage E1024 SFF Disk Expansion Dual SAS IO Module, Rail Kit, 9x5 NBD 64111B4

For details about supported drives, adapters, and cables for the Lenovo Storage E1012 and E1024, see the Lenovo Press Product Guide:
http://lenovopress.com/lp0043

The following table lists the relationship models of the 12 Gbps SAS external drive enclosures that are offered by Lenovo that can be used with the System x3250 M6 for storage expansion.

Table 34. D1212 and D1224 relationship models
Description Part number
LFF models
D1212 LFF Chassis, Dual 3-port ESMs (US English documentation) 4587A11*
D1212 LFF Chassis, Dual 3-port ESMs (Simplified Chinese documentation) 4587A1C^
D1212 LFF Chassis, Dual 3-port ESMs (Japanese documentation) 4587A1J**
D1212 LFF Chassis, Dual 3-port ESMs, 4x 2TB 3.5” HDDs, 4x 0.5m SAS cables 4587D11^^
SFF models
D1224 SFF Chassis, Dual 3-port ESMs (US English documentation) 4587A31*
D1224 SFF Chassis, Dual 3-port ESMs (Simplified Chinese documentation) 4587A3C^
D1224 SFF Chassis, Dual 3-port ESMs (Japanese documentation) 4587A3J**
D1224 SFF Chassis, Dual 3-port ESMs, 8x 600GB 15K HDDs, 4x 0.5m SAS cables 4587D21^^

* Available worldwide (except China and Japan)
^ Available only in China
** Available only in Japan
^^ Available worldwide (except China)

The following table lists the TopSeller models of the 12 Gbps SAS external drive enclosures that are offered by Lenovo that can be used with the System x3250 M6 for storage expansion.

Table 35. D1212 and D1224 TopSeller models
Description Part number
LFF models - North America (NA) and Europe, Middle East, and Africa (EMEA)
Lenovo Storage D1212 LFF Dual ESM Disk Expansion Enclosure (US English documentation) 4587E11
LFF models - Brazil and Latin America
D1212 LFF Chassis, Dual 3-port ESMs, 4x 2TB 3.5" HDDs, 4x 0.5m SAS cables 4587EAU
D1212 LFF Chassis, Dual 3-port ESMs, 4x 4TB 3.5" HDDs, 4x 0.5m SAS cables 4587EBU
D1212 LFF Chassis, Dual 3-port ESMs, 4x 6TB 3.5" HDDs, 4x 0.5m SAS cables 4587ECU
D1212 LFF Chassis, Dual 3-port ESMs, 4x 8TB 3.5" HDDs, 4x 0.5m SAS cables 4587EDU
D1212 LFF Chassis, Dual 3-port ESMs, 8x 2TB 3.5" HDDs, 4x 0.5m SAS cables 4587EEU
D1212 LFF Chassis, Dual 3-port ESMs, 8x 4TB 3.5" HDDs, 4x 0.5m SAS cables 4587EFU
D1212 LFF Chassis, Dual 3-port ESMs, 8x 6TB 3.5" HDDs, 4x 0.5m SAS cables 4587EGU
D1212 LFF Chassis, Dual 3-port ESMs, 8x 8TB 3.5" HDDs, 4x 0.5m SAS cables 4587EHU
D1212 LFF Chassis, Dual 3-port ESMs, 12x 2TB 3.5" HDDs, 4x 0.5m SAS cables 4587EIU
D1212 LFF Chassis, Dual 3-port ESMs, 12x 4TB 3.5" HDDs, 4x 0.5m SAS cables 4587EJU
D1212 LFF Chassis, Dual 3-port ESMs, 12x 6TB 3.5" HDDs, 4x 0.5m SAS cables 4587EKU
D1212 LFF Chassis, Dual 3-port ESMs, 12x 8TB 3.5" HDDs, 4x 0.5m SAS cables 4587ELU
SFF models - North America (NA) and Europe, Middle East, and Africa (EMEA)
Lenovo Storage D1224 SFF Dual ESM Disk Expansion Enclosure (US English documentation) 4587E31
SFF models - Brazil and Latin America
D1224 SFF Chassis, Dual 3-port ESMs, 9x 1.2TB 10K HDDs, 4x 0.5m SAS cables 4587E6U
D1224 SFF Chassis, Dual 3-port ESMs, 9x 1.2TB 10K HDDs, 2x 400GB SSDs, 4x 0.5m SAS cables 4587E2U
D1224 SFF Chassis, Dual 3-port ESMs, 9x 1.2TB 10K HDDs, 4x 400GB SSDs, 4x 0.5m SAS cables 4587E4U
D1224 SFF Chassis, Dual 3-port ESMs, 18x 1.2TB 10K HDDs, 1x 0.5m SAS cable 4587E5U
D1224 SFF Chassis, Dual 3-port ESMs, 18x 1.2TB 10K HDDs, 2x 400GB SSDs, 4x 0.5m SAS cables 4587E1U
D1224 SFF Chassis, Dual 3-port ESMs, 18x 1.2TB 10K HDDs, 4x 400GB SSDs, 4x 0.5m SAS cables 4587E3U

For details about supported drives, adapters, and cables for the Lenovo Storage D1212 and D1224, see the Lenovo Press Product Guide:
http://lenovopress.com/lp0512

The following table lists the relationship models of the 12 Gbps SAS external high density drive enclosures that are offered by Lenovo that can be used with the System x3250 M6 for storage expansion.

Table 36. D3284 relationship models
Description Part number
Lenovo Storage D3284 4TB x 84 HD Expansion Enclosure 641311F
Lenovo Storage D3284 6TB x 84 HD Expansion Enclosure 641312F
Lenovo Storage D3284 8TB x 84 HD Expansion Enclosure 641313F
Lenovo Storage D3284 10TB x 84 HD Expansion Enclosure 641314F

The following table lists the TopSeller models of the 12 Gbps SAS external high density drive enclosures that are offered by Lenovo that can be used with the System x3250 M6 for storage expansion..

Table 37. D3284 TopSeller models
Description Part number
Lenovo Storage D3284 High Density Expansion Enclosure 6413E5F
Lenovo Storage D3284 4TB x 42 HD Expansion Enclosure 6413E1H
Lenovo Storage D3284 4TB x 84 HD Expansion Enclosure 6413E1F
Lenovo Storage D3284 6TB x 42 HD Expansion Enclosure 6413E2H
Lenovo Storage D3284 6TB x 84 HD Expansion Enclosure 6413E2F
Lenovo Storage D3284 8TB x 42 HD Expansion Enclosure 6413E3H
Lenovo Storage D3284 8TB x 84 HD Expansion Enclosure 6413E3F
Lenovo Storage D3284 10TB x 42 HD Expansion Enclosure 6413E4H
Lenovo Storage D3284 10TB x 84 HD Expansion Enclosure 6413E4F

For details about supported drives, adapters, and cables for the Lenovo Storage D3284, see the Lenovo Press Product Guide:
http://lenovopress.com/lp0513

External storage systems

The following table lists the external storage systems that are currently offered by Lenovo that can be used with the System x3250 M6 in storage solutions.

Table 38. External storage systems
Description Part number
Lenovo Storage DX8200 Series (NAS, iSCSI connectivity)
Lenovo Storage DX8200N with 1x N2226 HBA 5128A1x*
Lenovo Storage DX8200N with 2x N2226 HBAs 5128A2x*
Lenovo Storage S Series (SAS, iSCSI, or FC host connectivity)
Lenovo Storage S2200 LFF Chassis SAS Single Controller, Rack Kit, 9x5NBD 64112B1
Lenovo Storage S2200 LFF Chassis SAS Dual Controller, Rack Kit, 9x5NBD 64112B2
Lenovo Storage S2200 LFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD 64114B1
Lenovo Storage S2200 LFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD 64114B2
Lenovo Storage S2200 SFF Chassis SAS Single Controller, Rack Kit, 9x5NBD 64112B3
Lenovo Storage S2200 SFF Chassis SAS Dual Controller, Rack Kit, 9x5NBD 64112B4
Lenovo Storage S2200 SFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD 64114B3
Lenovo Storage S2200 SFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD 64114B4
Lenovo Storage S3200 LFF Chassis SAS Single Controller, Rack Kit, 9x5NBD 64113B1
Lenovo Storage S3200 LFF Chassis SAS Dual Controller, Rack Kit, 9x5NBD 64113B2
Lenovo Storage S3200 LFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD 64116B1
Lenovo Storage S3200 LFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD 64116B2
Lenovo Storage S3200 SFF Chassis SAS Single Controller, Rack Kit, 9x5NBD 64113B3
Lenovo Storage S3200 SFF Chassis SAS Dual Controller, Rack Kit, 9x5NBD 64113B4
Lenovo Storage S3200 SFF Chassis FC/iSCSI Single Controller, Rack Kit, 9x5NBD 64116B3
Lenovo Storage S3200 SFF Chassis FC/iSCSI Dual Controller, Rack Kit, 9x5NBD 64116B4
Lenovo Storage V Series (SAS, iSCSI, FC, or FCoE host connectivity)
Lenovo Storage V3700 V2 LFF Control Enclosure 6535C1D
Lenovo Storage V3700 V2 LFF Control Enclosure (TopSeller) 6535EC1
Lenovo Storage V3700 V2 SFF Control Enclosure 6535C2D
Lenovo Storage V3700 V2 SFF Control Enclosure (TopSeller) 6535EC2
Lenovo Storage V3700 V2 XP LFF Control Enclosure 6535C3D
Lenovo Storage V3700 V2 XP LFF Control Enclosure (TopSeller) 6535EC3
Lenovo Storage V3700 V2 XP SFF Control Enclosure 6535C4D
Lenovo Storage V3700 V2 XP SFF Control Enclosure (TopSeller) 6535EC4
Lenovo Storage V5030 LFF Control Enclosure 3Yr S&S 6536C12
Lenovo Storage V5030 LFF Control Enclosure 5Yr S&S 6536C32
Lenovo Storage V5030 SFF Control Enclosure 3Yr S&S 6536C22
Lenovo Storage V5030 SFF Control Enclosure 5Yr S&S 6536C42
Lenovo Storage V5030F SFF Control Enclosure 3Yr S&S 6536B1F
Lenovo Storage V5030F SFF Control Enclosure 5Yr S&S 6536B2F
IBM Storwize for Lenovo (SAS [except V7000], iSCSI, FC, or FCoE host connectivity)
IBM Storwize V3500 3.5-inch Dual Control Storage Controller Unit 6096CU2**
IBM Storwize V3500 2.5-inch Dual Control Storage Controller Unit 6096CU3**
IBM Storwize V3700 3.5-inch Storage Controller Unit 6099L2C
IBM Storwize V3700 2.5-inch Storage Controller Unit 6099S2C
IBM Storwize V3700 2.5-inch DC Storage Controller Unit 6099T2C
IBM Storwize V5000 LFF Control Enclosure, w/3 Yr S&S 6194L2C†
IBM Storwize V5000 LFF Control Enclosure, w/3 Yr S&S (LA) 6194L2L‡
IBM Storwize V5000 LFF Control Enclosure, w/5 Yr S&S 61941A1†
IBM Storwize V5000 LFF Control Enclosure, w/5 Yr S&S (LA) 61941AL‡
IBM Storwize V5000 SFF Control Enclosure, w/3 Yr S&S 6194S2C†
IBM Storwize V5000 SFF Control Enclosure, w/3 Yr S&S (LA) 6194S2L‡
IBM Storwize V5000 SFF Control Enclosure, w/5 Yr S&S 61941C1†
IBM Storwize V5000 SFF Control Enclosure, w/5 Yr S&S (LA) 61941CL‡
IBM Storwize V7000 2.5-inch Storage Controller Unit, w/3 Yr S&S (Model 524) 6195SC5†
IBM Storwize V7000 2.5-inch Storage Controller Unit, w/3 Yr S&S (LA) (Model 524) 6195SCL‡
IBM Storwize V7000 2.5-inch Storage Controller Unit, w/5 Yr S&S (Model 524) 61951F1†
IBM Storwize V7000 2.5-inch Storage Controller Unit, w/5 Yr S&S (LA) (Model 524) 61951FL‡
IBM Storwize V7000 SFF Control Enclosure, 3YR SWMA (Model HC1 [Gen2+]) 6195C32†
IBM Storwize V7000 SFF Control Enclosure, 3YR SWMA, LA (Model HC1 [Gen2+]) 6195C3L‡
IBM Storwize V7000 SFF Control Enclosure, 5YR SWMA (Model HC1 [Gen2+]) 6195C52†
IBM Storwize V7000 SFF Control Enclosure, 5YR SWMA, LA (Model HC1 [Gen2+]) 6195C5L‡

* x represents a geo-specific letter (for example: U = North America, G = EMEA). Ask a Lenovo representative for specifics.
** Available only in China.
† Available worldwide except Latin America.
‡ Available only in Latin America.

For more information, see the list of Product Guides in the following categories:

External backup units

The following table lists the external backup options that are offered by Lenovo that can be used with the System x3250 M6 in backup solutions.

Table 39. External backup unit options
Description Part number
External RDX USB drives
RDX External USB 3.0 Dock with 320GB Cartridge 362532Y
RDX External USB 3.0 Dock with 500GB Cartridge 362550Y
RDX External USB 3.0 Dock with 1TB Cartridge 36251TY
External SAS tape backup drives
IBM TS2250 Tape Drive Model H5S 6160S5E
IBM TS2260 Tape Drive Model H6S 6160S6E
IBM TS2270 Tape Drive Model H7S 6160S7E
External SAS tape backup autoloaders
IBM TS2900 Tape Autoloader w/LTO5 HH SAS 6171S5R
IBM TS2900 Tape Autoloader w/LTO6 HH SAS 6171S6R
IBM TS2900 Tape Autoloader w/LTO7 HH SAS 6171S7R
External tape backup libraries
IBM TS3100 Tape Library Model L2U 61732UL
IBM TS3200 Tape Library Model L4U 61734UL
Fibre Channel backup drives for TS3100 and TS3200 Tape Libraries
6173 LTO Ultrium 5 Fibre Channel Drive 00NA107
6173 LTO Ultrium 5 Half High Fibre Drive Sled 00NA113
6173 LTO Ultrium 6 Fibre Channel Drive 00NA115
6173 LTO Ultrium 6 Half High Fibre Drive Sled 00NA119
6173 LTO Ultrium 7 Fibre Channel Drive 00WF765
6173 LTO Ultrium 7 Half High Fibre Drive Sled 00WF769
SAS backup drives for TS3100 and TS3200 Tape Libraries
6173 LTO Ultrium 5 SAS Drive Sled 00NA109
6173 LTO Ultrium 5 Half High SAS Drive Sled 00NA111
6173 LTO Ultrium 6 Half High SAS Drive Sled 00NA117
6173 LTO Ultrium 7 Half High SAS Drive Sled 00WF767

For more information, see the list of Product Guides in the Backup units category:
http://lenovopress.com/servers/options/backup

Ethernet LAN switches

The following table lists the Ethernet LAN switches that are offered by Lenovo that can be used with the System x3250 M6 in network connectivity solutions.

Table 40. Ethernet LAN switches
Description Part number
1 Gb Ethernet switches
Juniper EX2300-C PoE Switch 7165H1X
Juniper EX2300-24p PoE Switch 7165H2X
Lenovo RackSwitch G7028 (Rear to Front) 7159BAX
Lenovo RackSwitch G7052 (Rear to Front) 7159CAX
Lenovo RackSwitch G8052 (Rear to Front) 7159G52
10 Gb Ethernet switches
Lenovo RackSwitch G8124E (Rear to Front) 7159BR6
Lenovo RackSwitch G8264 (Rear to Front) 7159G64
Lenovo RackSwitch G8264CS (Rear to Front) 7159DRX
Lenovo RackSwitch G8272 (Rear to Front) 7159CRW
Lenovo RackSwitch G8296 (Rear to Front) 7159GR6
40 Gb Ethernet switches
Lenovo RackSwitch G8332 (Rear to Front) 7159BRX

For more information, see the list of Product Guides in the Top-of-rack switches category:
http://lenovopress.com/servers/options/switches

Fibre Channel SAN switches

The following table lists the Fibre Channel SAN switches that are offered by Lenovo that can be used with the System x3250 M6 in FC SAN storage connectivity solutions.

Table 41. Fibre Channel SAN switches
Description Part number
8 Gb Fibre Channel
Lenovo B300, 8 ports activated w/ 8Gb SWL SFPs, 1 PS, Rail Kit 3873AR3
Lenovo B6505, 12 ports activated w/ 8Gb SWL SFPs, 1 PS, Rail Kit 3873AR4
Lenovo B6510, 24 ports activated w/ 8Gb SWL SFPs, 2 PS, Rail Kit 3873BR2
16 Gb Fibre Channel
Lenovo B6505, 12 ports activated w/ 16Gb SWL SFPs, 1 PS, Rail Kit 3873AR5
Lenovo B6510, 24 ports activated w/ 16Gb SWL SFPs, 2 PS, Rail Kit 3873BR3

For more information, see the list of Product Guides in the Rack SAN Switches category:
http://lenovopress.com/storage/switches/rack

Rack cabinets

The following table lists the rack cabinets that are offered by Lenovo that can be used in System x3250 M6 solutions.

Table 42. Rack cabinets
Description Part number
11U Rack Office Enablement Kit 201886X
25U S2 Standard Rack 93072RX
25U Static S2 Standard Rack 93072PX
42U S2 Standard Rack 93074RX
42U 1100mm Enterprise V2 Dynamic Rack 93634PX
42U 1100mm Enterprise V2 Dynamic Expansion Rack 93634EX
42U 1200mm Deep Dynamic Rack 93604PX
42U 1200mm Deep Static Rack 93614PX
42U Enterprise Rack 93084PX
42U Enterprise Expansion Rack 93084EX

For more information, see the list of Product Guides in the Rack cabinets category:
http://lenovopress.com/servers/options/racks

KVM switches and consoles

The following table lists the KVM switches and consoles that are offered by Lenovo that can be used in System x3250 M6 solutions.

Table 43. KVM switch and console options
Description Part number
Consoles
1U 18.5" Standard Console (without keyboard) 17238BX
Console keyboards
Lenovo UltraNav Keyboard USB - US Eng 00MW310
Keyboard w/ Int. Pointing Device USB - Arabic 253 RoHS v2 46W6713
Keyboard w/ Int. Pointing Device USB - Belg/UK 120 RoHS v2 46W6714
Keyboard w/ Int. Pointing Device USB - Chinese/US 467 RoHS v2 46W6715
Keyboard w/ Int. Pointing Device USB - Czech 489 RoHS v2 46W6716
Keyboard w/ Int. Pointing Device USB - Danish 159 RoHS v2 46W6717
Keyboard w/ Int. Pointing Device USB - Dutch 143 RoHS v2 46W6718
Keyboard w/ Int. Pointing Device USB - French 189 RoHS v2 46W6719
Keyboard w/ Int. Pointing Device USB - Fr/Canada 445 RoHS v2 46W6720
Keyboard w/ Int. Pointing Device USB - German 129 RoHS v2 46W6721
Keyboard w/ Int. Pointing Device USB - Greek 219 RoHS v2 46W6722
Keyboard w/ Int. Pointing Device USB - Hebrew 212 RoHS v2 46W6723
Keyboard w/ Int. Pointing Device USB - Hungarian 208 RoHS v2 46W6724
Keyboard w/ Int. Pointing Device USB - Italian 141 RoHS v2 46W6725
Keyboard w/ Int. Pointing Device USB - Japanese 194 RoHS v2 46W6726
Keyboard w/ Int. Pointing Device USB - Korean 413 RoHS v2 46W6727
Keyboard w/ Int. Pointing Device USB - LA Span 171 RoHS v2 46W6728
Keyboard w/ Int. Pointing Device USB - Norwegian 155 RoHS v2 46W6729
Keyboard w/ Int. Pointing Device USB - Polish 214 RoHS v2 46W6730
Keyboard w/ Int. Pointing Device USB - Portugese 163 RoHS v2 46W6731
Keyboard w/ Int. Pointing Device USB - Russian 441 RoHS v2 46W6732
Keyboard w/ Int. Pointing Device USB - Slovak 245 RoHS v2 46W6733
Keyboard w/ Int. Pointing Device USB - Spanish 172 RoHS v2 46W6734
Keyboard w/ Int. Pointing Device USB - Swed/Finn 153 RoHS v2 46W6735
Keyboard w/ Int. Pointing Device USB - Swiss F/G 150 RoHS v2 46W6736
Keyboard w/ Int. Pointing Device USB - Thai 191 RoHS v2 46W6737
Keyboard w/ Int. Pointing Device USB - Turkish 179 RoHS v2 46W6738
Keyboard w/ Int. Pointing Device USB - UK Eng 166 RoHS v2 46W6739
Keyboard w/ Int. Pointing Device USB - US Euro 103P RoHS v2 46W6740
Keyboard w/ Int. Pointing Device USB - Slovenian 234 RoHS v2 46W6741
Console switches
Global 4x2x32 Console Manager (GCM32) 1754D2X
Global 2x2x16 Console Manager (GCM16) 1754D1X
Local 2x16 Console Manager (LCM16) 1754A2X
Local 1x8 Console Manager (LCM8) 1754A1X
Console cables
Single Cable USB Conversion Option (UCO) 43V6147
USB Conversion Option (4 Pack UCO) 39M2895
Virtual Media Conversion Option Gen2 (VCO2) 46M5383
Serial Conversion Option (SCO) 46M5382

For more information, see the list of Product Guides in the KVM Switches and Consoles category:
http://lenovopress.com/servers/options/kvm

Power distribution units

The following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in System x3250 M6 solutions.

Table 44. Power distribution units
Description Part number
0U Basic PDUs
0U 36 C13/6 C19 24A/200-240V 1 Phase PDU with NEMA L6-30P line cord 00YJ776
0U 36 C13/6 C19 32A/200-240V 1 Phase PDU with IEC60309 332P6 line cord 00YJ777
0U 21 C13/12 C19 32A/200-240V/346-415V 3 Phase PDU with IEC60309 532P6 line cord 00YJ778
0U 21 C13/12 C19 48A/200-240V 3 Phase PDU with IEC60309 460P9 line cord 00YJ779
Switched and Monitored PDUs
0U 20 C13/4 C19 Switched and Monitored 24A/200-240V/1Ph PDU w/ NEMA L6-30P line cord 00YJ781
0U 20 C13/4 C19 Switched and Monitored 32A/200-240V/1Ph PDU w/ IEC60309 332P6 line cord 00YJ780
0U 18 C13/6 C19 Switched / Monitored 32A/200-240V/346-415V/3Ph PDU w/ IEC60309 532P6 cord 00YJ782
0U 12 C13/12 C19 Switched and Monitored 48A/200-240V/3Ph PDU w/ IEC60309 460P9 line cord 00YJ783
1U 9 C19/3 C13 Switched and Monitored DPI PDU (without line cord) 46M4002
1U 9 C19/3 C13 Switched and Monitored 60A 3Ph PDU with IEC 309 3P+Gnd cord 46M4003
1U 12 C13 Switched and Monitored DPI PDU (without line cord) 46M4004
1U 12 C13 Switched and Monitored 60A 3 Phase PDU with IEC 309 3P+Gnd line cord 46M4005
Ultra Density Enterprise PDUs (9x IEC 320 C13 + 3x IEC 320 C19 outlets)
Ultra Density Enterprise C19/C13 PDU Module (without line cord) 71762NX
Ultra Density Enterprise C19/C13 PDU 60A/208V/3ph with IEC 309 3P+Gnd line cord 71763NU
C13 Enterprise PDUs (12x IEC 320 C13 outlets)
DPI C13 Enterprise PDU+ (without line cord) 39M2816
DPI Single Phase C13 Enterprise PDU (without line cord) 39Y8941
C19 Enterprise PDUs (6x IEC 320 C19 outlets)
DPI Single Phase C19 Enterprise PDU (without line cord) 39Y8948
DPI 60A 3 Phase C19 Enterprise PDU with IEC 309 3P+G (208 V) fixed line cord 39Y8923
Front-end PDUs (3x IEC 320 C19 outlets)
DPI 30amp/125V Front-end PDU with NEMA L5-30P line cord 39Y8938
DPI 30amp/250V Front-end PDU with NEMA L6-30P line cord 39Y8939
DPI 32amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8934
DPI 60amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8940
DPI 63amp/250V Front-end PDU with IEC 309 2P+Gnd line cord 39Y8935
Universal PDUs (7x IEC 320 C13 outlets)
DPI Universal 7 C13 PDU (with 2 m IEC 320-C19 to C20 rack power cord) 00YE443
NEMA PDUs (6x NEMA 5-15R outlets)
DPI 100-127V PDU with fixed NEMA L5-15P line cord 39Y8905
Line cords for PDUs that ship without a line cord
DPI 30a Line Cord (NEMA L6-30P) 40K9614
DPI 32a Line Cord (IEC 309 P+N+G) 40K9612
DPI 32a Line Cord (IEC 309 3P+N+G) 40K9611
DPI 60a Cord (IEC 309 2P+G) 40K9615
DPI 63a Cord (IEC 309 P+N+G) 40K9613
DPI Australian/NZ 3112 Line Cord (32A) 40K9617
DPI Korean 8305 Line Cord (30A) 40K9618

For more information, see the list of Product Guides in the Power infrastructure category:
https://lenovopress.com/servers/options/pdu

Uninterruptible power supply units

The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo that can be used in System x3250 M6 solutions.

Table 45. Uninterruptible power supply units
Description Part number
RT1.5kVA 2U Rack or Tower UPS (100-125VAC) 55941AX
RT1.5kVA 2U Rack or Tower UPS (200-240VAC) 55941KX
RT2.2kVA 2U Rack or Tower UPS (100-125VAC) 55942AX
RT2.2kVA 2U Rack or Tower UPS (200-240VAC) 55942KX
RT3kVA 2U Rack or Tower UPS (100-125VAC) 55943AX
RT3kVA 2U Rack or Tower UPS (200-240VAC) 55943KX
RT5kVA 3U Rack or Tower UPS (200-240VAC) 55945KX
RT6kVA 3U Rack or Tower UPS (200-240VAC) 55946KX
RT8kVA 6U Rack or Tower UPS (200-240VAC) 55948KX
RT11kVA 6U Rack or Tower UPS (200-240VAC) 55949KX
RT8kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) 55948PX
RT11kVA 6U 3:1 Phase Rack or Tower UPS (380-415VAC) 55949PX

For more information, see the list of Product Guides in the Power infrastructure category:
http://lenovopress.com/servers/options/ups

Lenovo Financial Services

Lenovo Financial Services reinforces Lenovo’s commitment to deliver pioneering products and services that are recognized for their quality, excellence, and trustworthiness. Lenovo Financial Services offers financing solutions and services that complement your technology solution anywhere in the world.

We are dedicated to delivering a positive finance experience for customers like you who want to maximize your purchase power by obtaining the technology you need today, protect against technology obsolescence, and preserve your capital for other uses.

We work with businesses, non-profit organizations, governments and educational institutions to finance their entire technology solution. We focus on making it easy to do business with us. Our highly experienced team of finance professionals operates in a work culture that emphasizes the importance of providing outstanding customer service. Our systems, processes and flexible policies support our goal of providing customers with a positive experience.

We finance your entire solution. Unlike others, we allow you to bundle everything you need from hardware and software to service contracts, installation costs, training fees, and sales tax. If you decide weeks or months later to add to your solution, we can consolidate everything into a single invoice.

Our Premier Client services provide large accounts with special handling services to ensure these complex transactions are serviced properly. As a premier client, you have a dedicated finance specialist who manages your account through its life, from first invoice through asset return or purchase. This specialist develops an in-depth understanding of your invoice and payment requirements. For you, this dedication provides a high-quality, easy, and positive financing experience.

For your region specific offers please ask your Lenovo sales representative or your technology provider about the use of Lenovo Financial Services. For more information, see the following Lenovo website:
http://www.lenovofs.com

Related product families

Product families related to this document are the following:

Bảo mật thông tin | Đổi, trả hàng và hoàn tiền | Bảo hành | Vận chuyển, giao nhận | Hình thức thanh toán
Copyright © 2007 - 2014 | Công ty Cổ phần Phát triển Giải pháp Công nghệ THT
MST: 0102266369 | Giấy phép ĐKKD số: 0103017419 cấp ngày 21-05-2007
Tel: 096 450 7700 / 096 458 7700 / + 84 4 32001015 | Email: info@thts.vn
Trụ sở: Phòng 510 nhà A11, Khu tập thể Thanh Xuân, P.Thanh Xuân Bắc, Q.Thanh Xuân, TP.Hà Nội
VP HN: P.805, 57 Vũ Trọng Phụng, Thanh Xuân, Hà Nội, Việt Nam
VP HCM: Phòng 502, 18B Nam Quốc Cang, Quận 1, Hồ Chí Minh
Người chịu trách nhiệm quản lý nội dung: Lê Hải Tú
