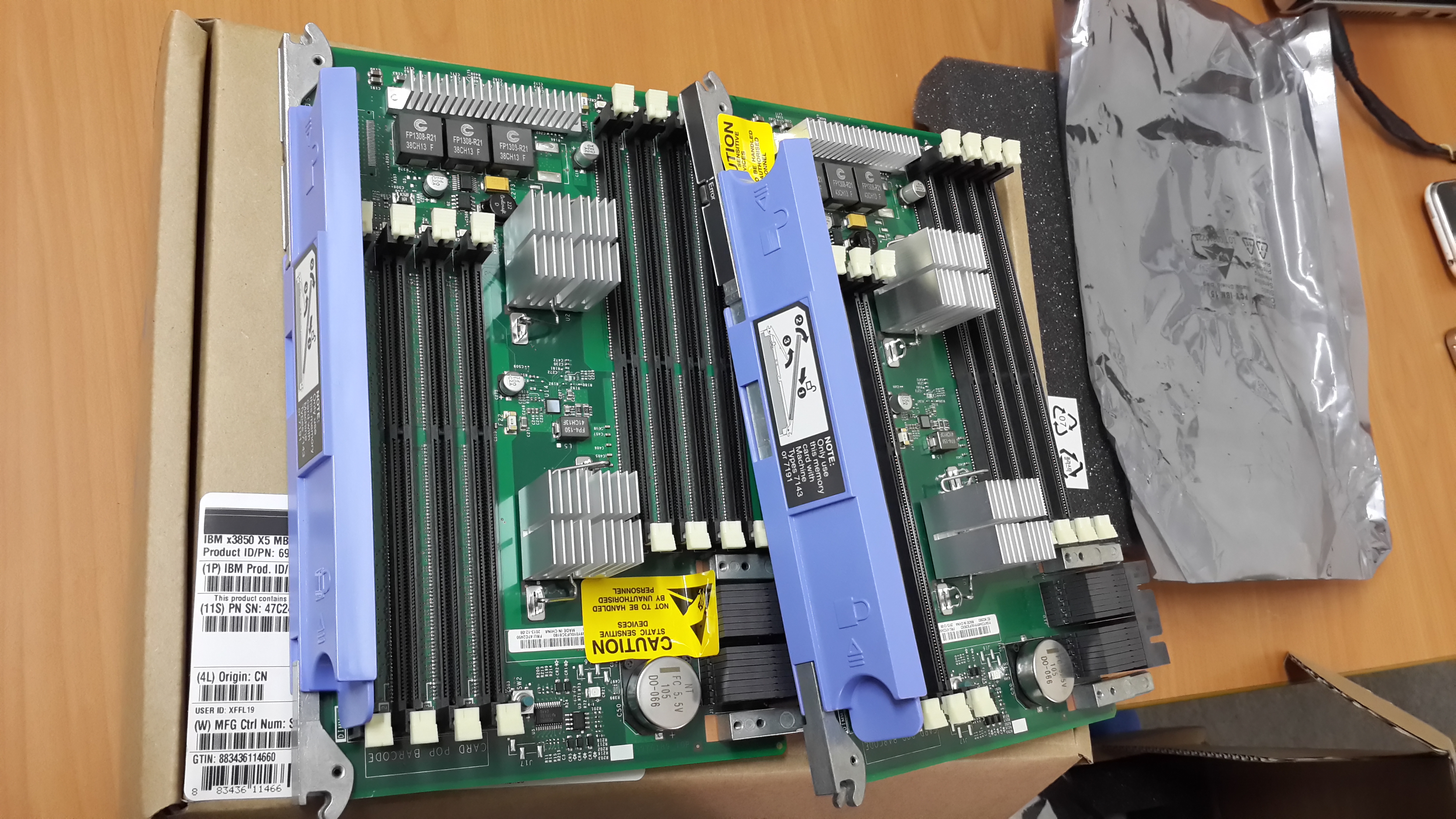

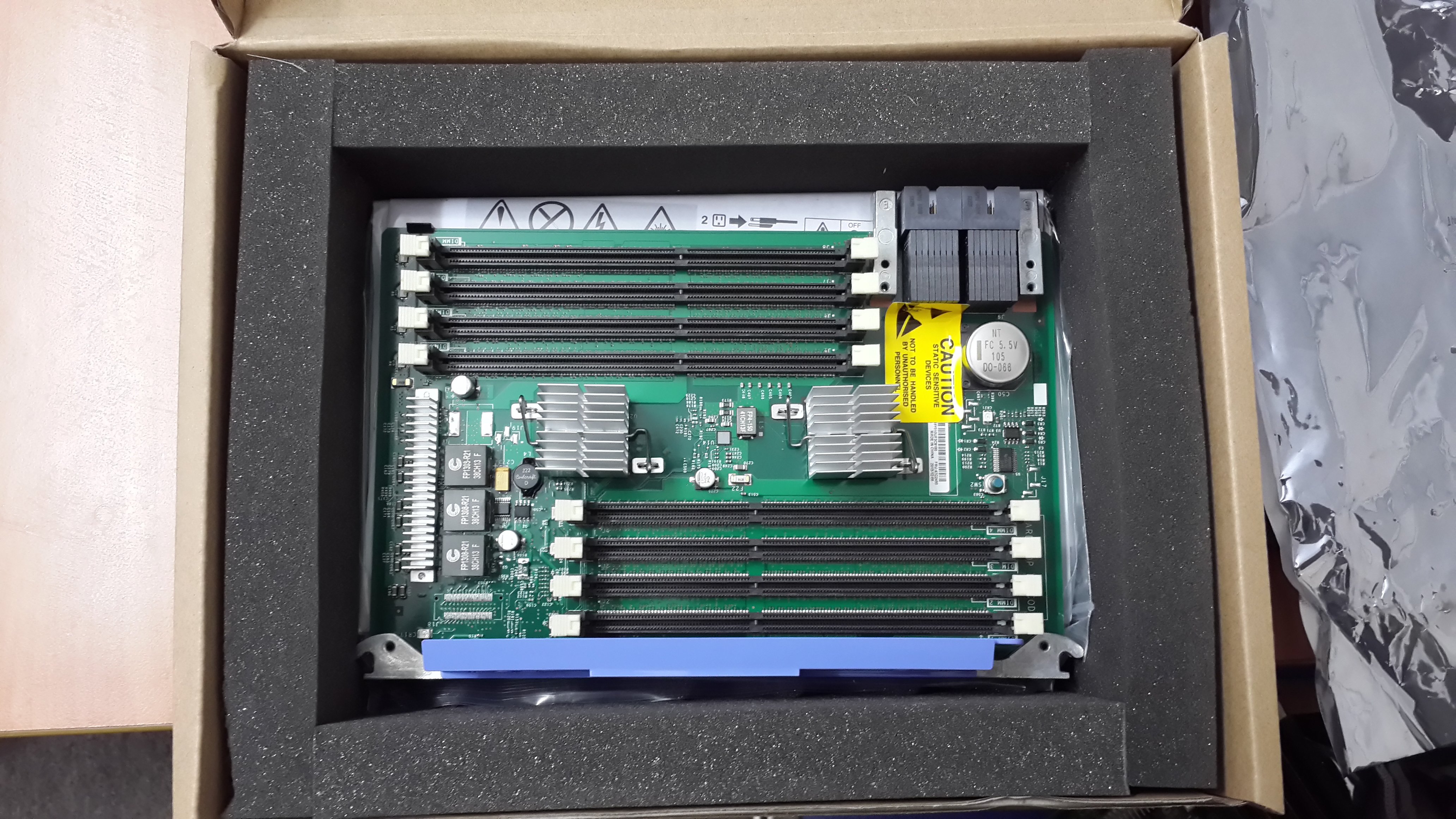

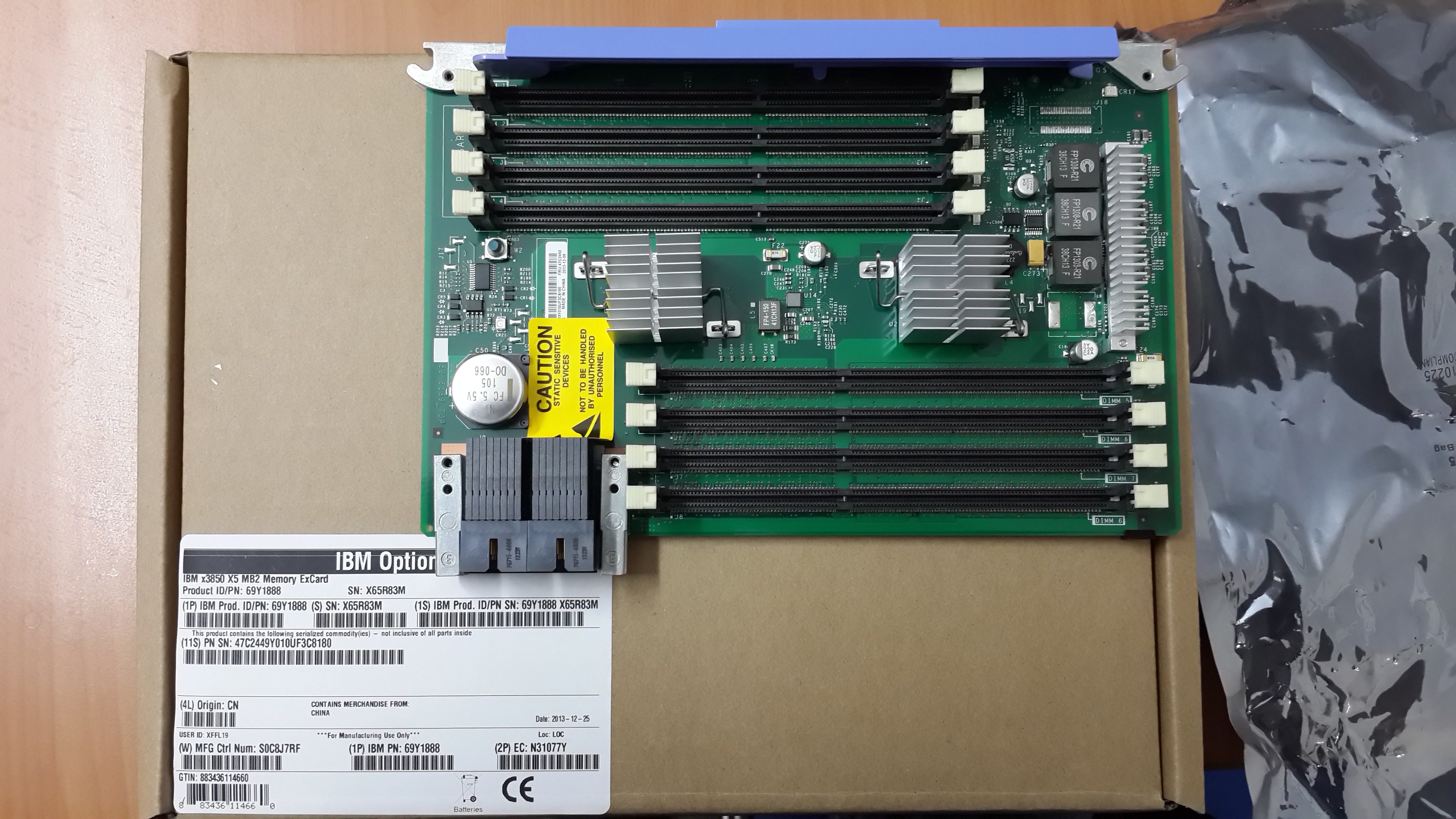

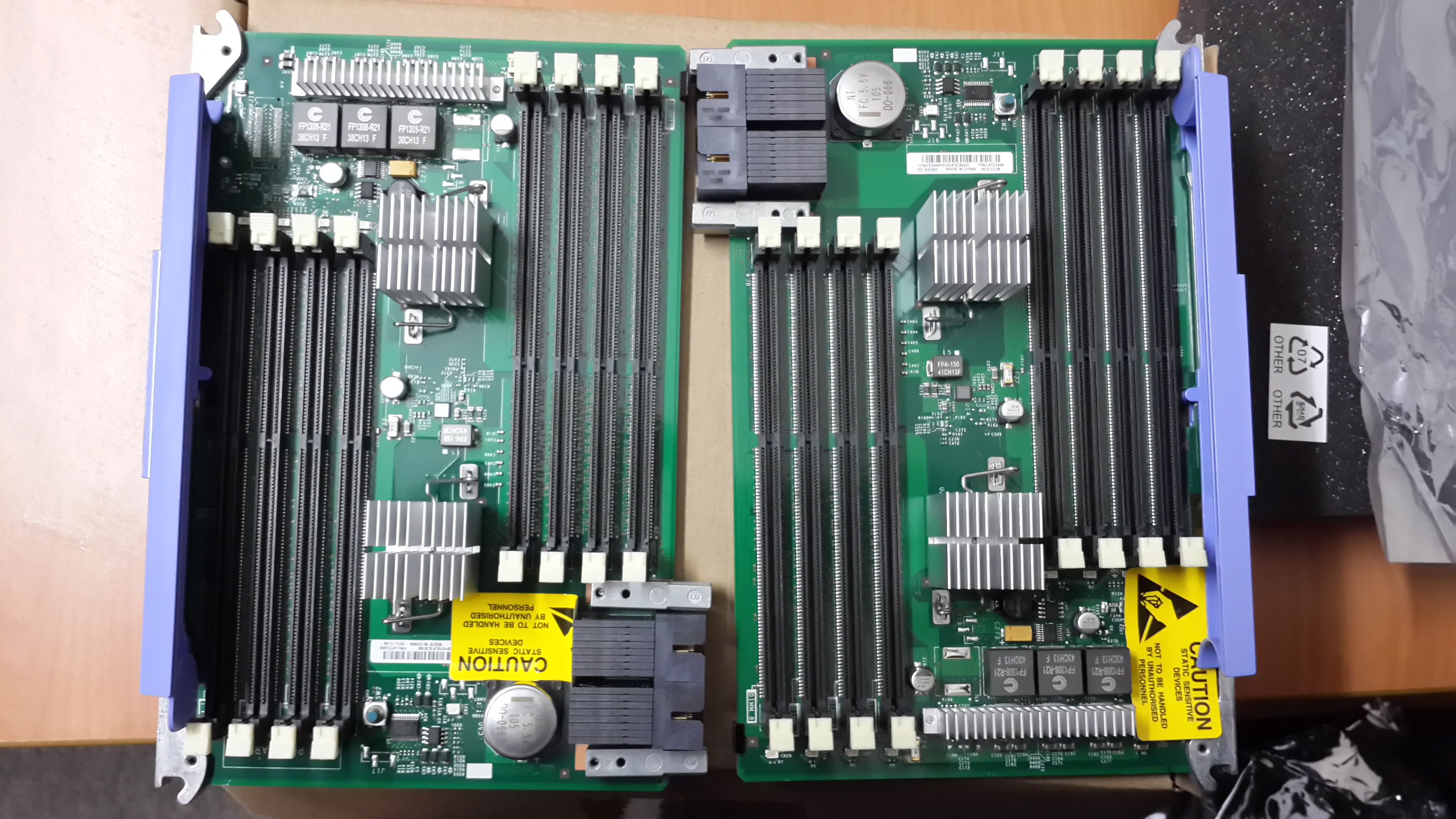

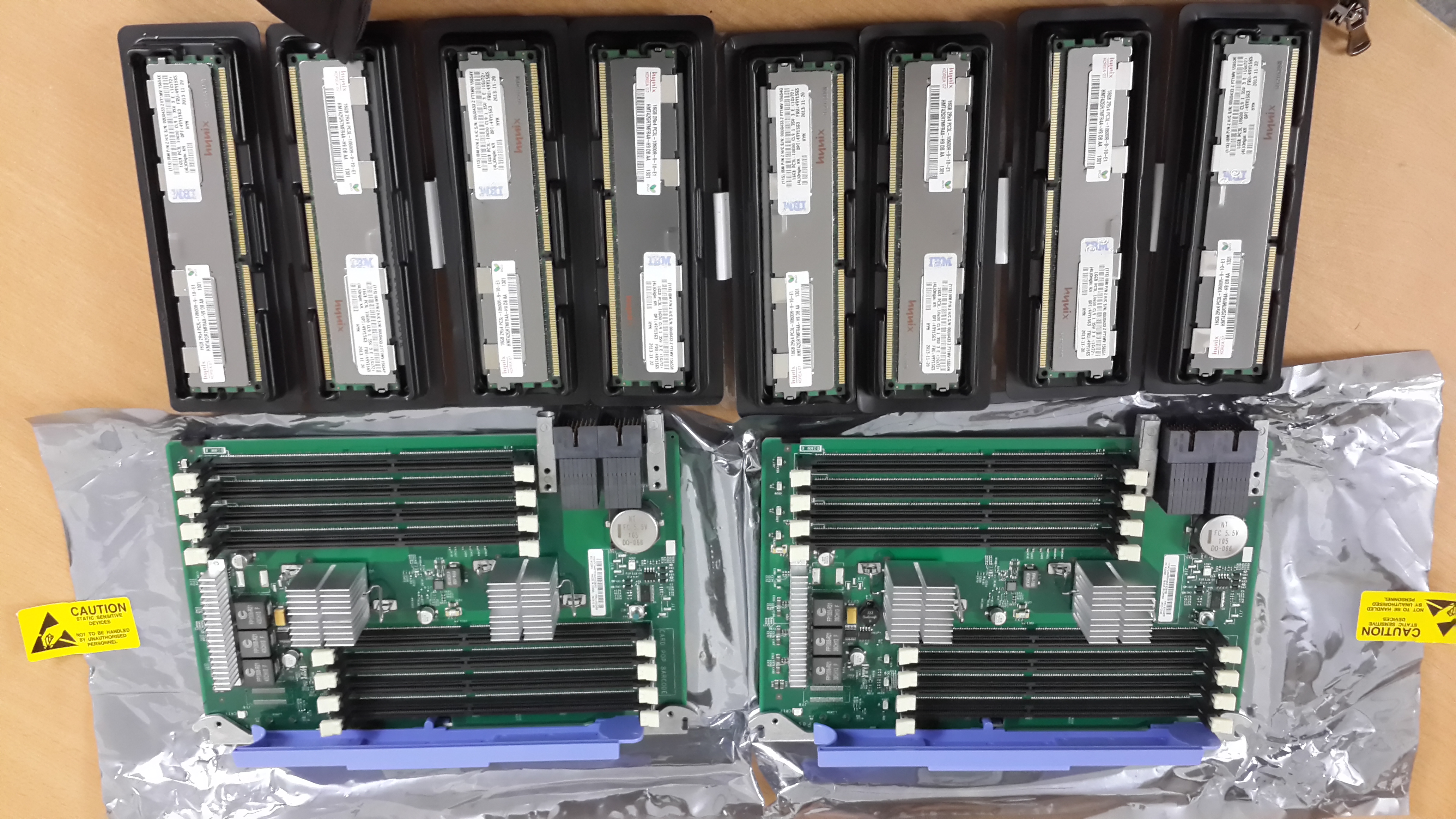

IBM Memory Expansion Card for x3850X5, x3950X5 |
|
|
.jpg)
|
|
Product ID: 69Y1888 FRU: 88Y5361
Original description: IBM x3850 X5 and x3950 X5 Memory Expansion Card - 69Y1888; Warranty 12 months.
Kho:
Sẵn hàng
Giá sản phẩm:
8.500.000 VNĐ
* Giá trên chưa bao gồm VAT *
|
|
|
SBB
number
|
Option
number
|
Feature
code |
Memory description |
|
Memory Cards
|
|
88Y5361
|
69Y1888
|
A14D
|
IBM x3850 X5 and x3950 X5 Memory Expansion Card |
|
Memory DIMMs
|
|
44T1597
|
44T1599*
|
1713
|
4GB (1x4GB, Dual Rankx8) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
|
46C7476
|
46C7482*
|
1706
|
8GB (1x8GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
|
46C7477
|
46C7483*
|
1707
|
16GB (1x16GB, 4Rx4, 1.5V) PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
|
49Y1389
|
49Y1407
|
8942
|
4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
|
49Y1382
|
49Y1400
|
8939
|
16GB (1x16GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
|
44T1587
|
44T1592*
|
1712
|
2GB (1x2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
|
49Y1381
|
49Y1399
|
A14E
|
8GB (1x8GB, 4Rx8, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
|
90Y3100
|
90Y3101
|
A1CP
|
32GB (1x32GB, 4Rx4, 1.35V) PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
|
49Y1532
|
-
|
2429
|
2GB MAX5 1x2GB 1Rx8 1.5V PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
|
49Y1534
|
-
|
2431
|
4GB MAX5 1x4GB DualRankx8 PC310600 CL9 ECC DDR3 1333MHz LP RDIMM |
|
49Y1535
|
-
|
2432
|
8GB MAX5 1x8GB QuadRankx8 PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
|
49Y1536
|
-
|
2433
|
16GB MAX5 1x16G QuadRankx4 PC3-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
|
90Y3171
|
-
|
A1MH
|
4GB MAX5 (1x4GB, 2Gb, 2Rx8, 1.35V) PC3L-10600R-999 LP ECC RDIMM |
|
90Y3205
|
-
|
A1R2
|
32GB MAX5 (4GB, 4Rx4, 1.35V) PC3L-8500 DDR3-1066MHz LP RDIMM |
|
90Y3172
|
-
|
A1N7
|
8GB MAX5 1x8GB, 4Rx8, 1.35V PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
|
90Y3173
|
-
|
A1N8
|
16GB MAX5 1x16GB 4Rx4 1.35V PC3L-8500 CL7 ECC DDR3 1066MHz LP RDIMM |
|
49Y1562
|
49Y1563
|
A1QT
|
16GB (1x16GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM |
|
-
|
46C7448*
|
-
|
4GB (1x4GB, Quad Rankx8) PC3-8500 CL7 ECC DDR3-1066MHz LP RDIMM |
|
Associated Memory Options
|
|
59Y6307
|
-
|
6437
|
IBM MAX5 for System x Memory DIMM Filler |
Notes:
- DIMMs are DDR3-SDRAM registered, required in pairs. Memory Cards support 8 DIMMs each.
- For pre-configured models (i.e. GAVs/SEOs) , a minimum of 1 Memory card and 2 DIMMs are REQUIRED for EACH installed CPU.
- Maximum: Eight memory cards, each card containing four pairs of DIMMs, 64 DIMMs per node.
- DIMM's must be installed in pairs. Pairs must be matching IBM PN's.
- For memory mirroring, Card1 mirrors Card2, Card3 mirrors Card4, Card5 mirrors Card6, Card7 mirrors Card8.
- Mirrored configurations require pairs of memory cards. Min sets of 4, i.e., 2 memory cards with at least 2 DIMMs populated per card, per CPU.
- The Cost sensitive rules are for 1 Memory card per CPU.
- The Performance Sensitive Configuration should always be used when there are 2 Memory cards per CPU - unless mirrored.
- When using the Performance sensitive rules, you must skip the table entries when the associated CPU is not installed.
|
Table 1. Standard Memory Configuration
|
| Model |
Std. DIMM Configuration |
| B1Y |
2 x 4GB (2Gb, 2Rx8) PC3L-10600R-999 LP ECC RDIMM (1.35V Capable) |
| B2Y, B3Y, B5Y, B6Y, B7Y, C1Y, C2Y |
4 x 4GB (2Gb, 2Rx8) PC3L-10600R-999 LP ECC RDIMM (1.35V Capable) |
| D1Y, D2Y |
32 x 4GB (2Gb, 2Rx8) PC3L-10600R-999 LP ECC RDIMM (1.35V Capable) |
| F1Y |
96 x 4GB (2Gb, 2Rx8) PC3L-10600R-999 LP ECC RDIMM (1.35V Capable) |
Figure 1. System x3850x5 / x3950x5 Memory card layout
